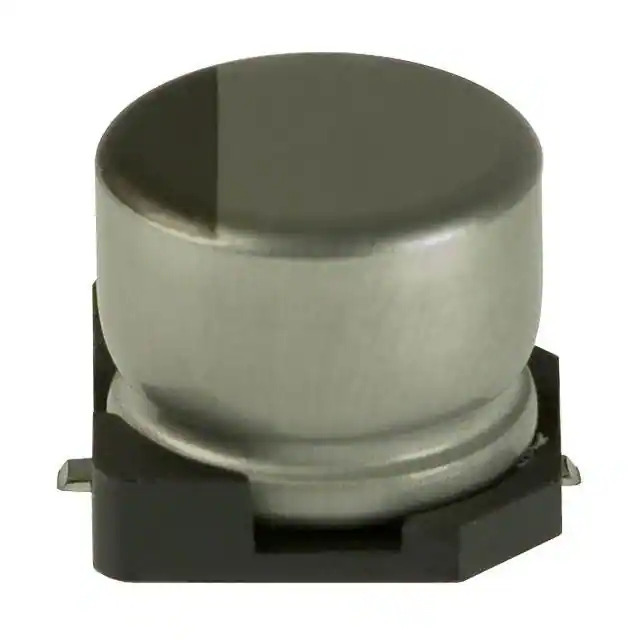

Same model may have multiple batches, images only for reference.

UWT1E330MCL1GB

Name: UWT1E330MCL1GB
Brand: Nichicon
SKU: 1360296
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1E330MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 25V SMD / 33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Product Status	Active
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	48 mA @ 120 Hz
Ripple Current @ High Frequency	72 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360296-UWT1E330MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWT1E330MCL1GB CAD Model

Description

The UWT1E330MCL1GB is a surface mount aluminum electrolytic capacitor from Nichicon's UWT series.

Capacitance: 33 μF
Voltage Rating: 25 V
Temperature Range: -55°C to 105°C
Application: General Purpose
Tolerance: ±20%
Ripple Current (Low Frequency): 48 mA @ 120 Hz
Ripple Current (High Frequency): 72 mA @ 10 kHz
Package: Radial, Can - SMD
Mounting Type: Surface Mount
Size: 0.248" Diameter (6.30mm)
Seated Height: 0.213" (5.40mm)
Lifetime: 1000 Hours @ 105°C
REACH Regulations: Unaffected
Product Status: Active
