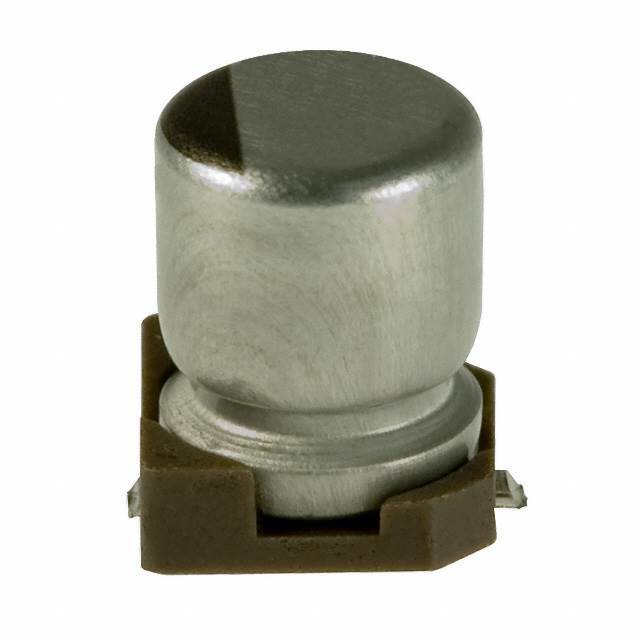

Same model may have multiple batches, images only for reference.

UWT1C100MCL1GB

Name: UWT1C100MCL1GB
Brand: Nichicon
SKU: 801912
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1C100MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 16V SMD / ALUMINUM ELECTROLYTIC CAPACITORS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	10μF
Tolerance	±20%
Voltage - Rated	16V
Lifetime at Temp.	1000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	18mA at 120Hz
Ripple Current at High Frequency	27mA at 10kHz
Dimension	0.157" Dia (4.00mm)
Height - Seated (Maximum)	0.213" (5.40mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	801912-UWT1C100MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWT1C100MCL1GB CAD Model

Description

The UWT1C100MCL1GB is a surface mount capacitor that is manufactured by Nichicon.

Capacitance: 10µF
Voltage Rating: 16V
Tolerance: ±20%
Polarized: Yes
Ripple Current: 18mA @ 120Hz, 27mA @ 10kHz
Temperature Range: -55°C ~ 105°C
Dimension: 0.157" Dia (4.00mm)
