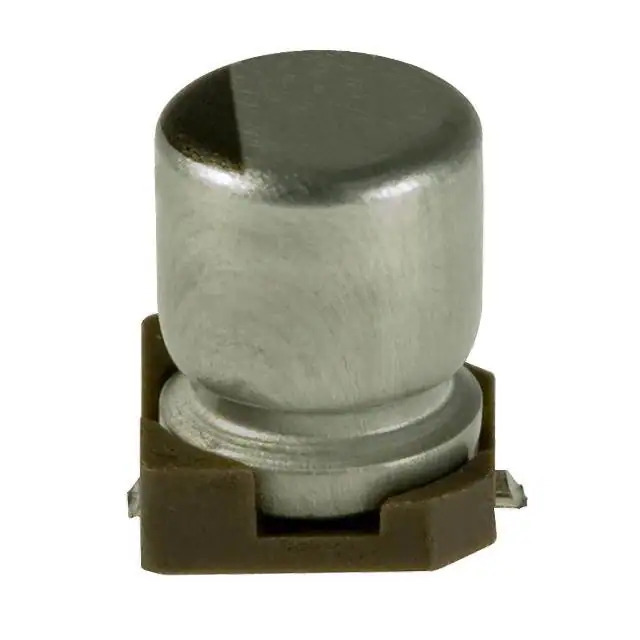

Same model may have multiple batches, images only for reference.
UWT0J220MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWT0J220MCL1GB

Part No UWT0J220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 6.3V SMD / 22 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWT
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 22 mA @ 120 Hz
Ripple Current @ High Frequency 33 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360369-UWT0J220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWT0J220MCL1GB CAD Model

Description

The UWT0J220MCL1GB is an aluminum electrolytic capacitor from Nichicon's UWT series.

  • Capacitance: 22 μF
  • Voltage Rating: 6.3 V
  • Mounting Type: Surface Mount
  • Diameter: 4.00mm
  • Height: 5.40mm
  • Application: General Purpose
  • Ripple Current @ Low Frequency: 22 mA @ 120 Hz
  • Ripple Current @ High Frequency: 33 mA @ 10 kHz
  • Lifetime: 1000 hours @ 105°C
  • Packaging: Tape and Reel
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • REACH Compliance: Yes
  • ECCN: EAR99
  • Polarization: Polarized
