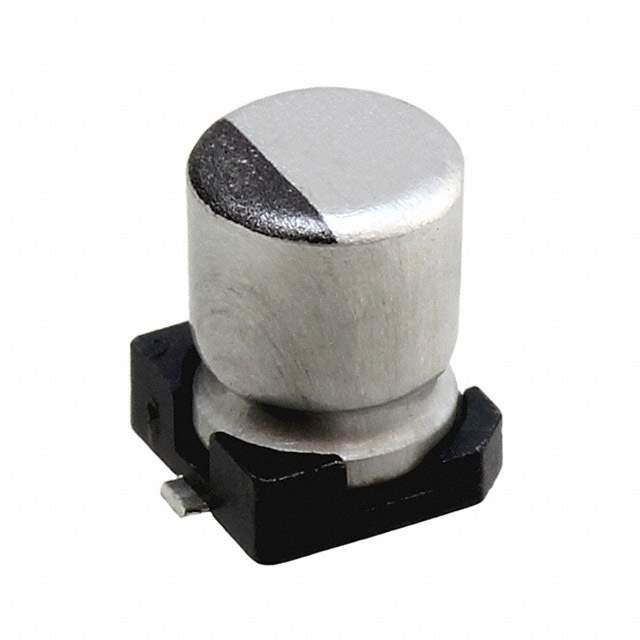

UWG1V010MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWG1V010MCL1GB

Part No UWG1V010MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 35V SMD / 1 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet
UWG1V010MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWG
Package Tape & Reel
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications General Purpose
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 60 mA @ 100 kHz
Impedance 3 Ohms
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351742-UWG1V010MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWG1V010MCL1GB CAD Model

Description

The UWG1V010MCL1GB is an aluminum electrolytic capacitor manufactured by Nichicon.

  • Type: general-purpose capacitor
  • Capacitance: 1 µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Mounting: surface-mount applications
  • Package: radial, can - SMD package
  • Supply: tape and reel
  • Height: 0.213" (5.40mm)
  • Diameter: 0.157" (4.00mm)
  • Impedance: 3 Ohms
  • Ripple Current (Low Frequency): 30 mA @ 120 Hz
  • Ripple Current (High Frequency): 60 mA @ 100 kHz
