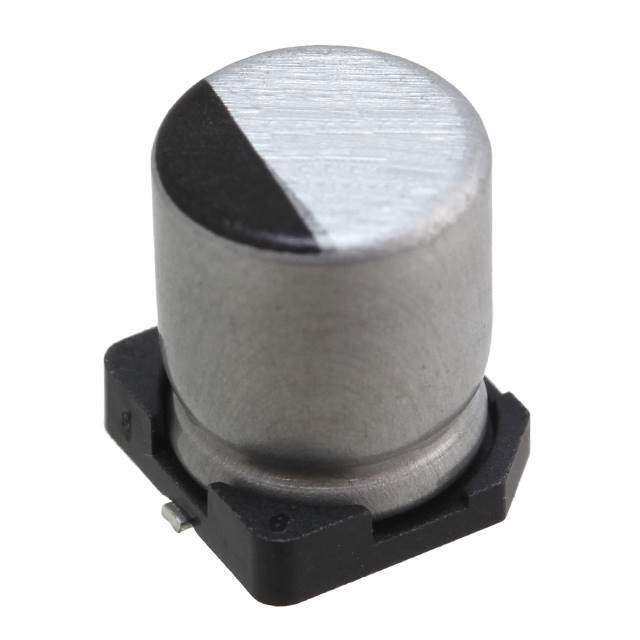

UWD1H470MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1H470MCL1GS

Part No UWD1H470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1H470MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 92.5 mA @ 120 Hz
Ripple Current @ High Frequency 185 mA @ 100 kHz
Impedance 680 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338673-UWD1H470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1H470MCL1GS CAD Model

Description

The UWD1H470MCL1GS electronic component is a capacitor manufactured by Nichicon.

  • Win Source Part Number: 1338673
  • Series: UWD
  • Packaging: Tape and Reel
  • Size/Dimension: 0.248 inches diameter
  • Application: General Purpose
  • Capacitance: 47 microfarads
  • Tolerance: +/-20%
  • Voltage Rating: 50V
  • Impedance: 680 milliohms
  • ESR: -
  • Lifetime: 2000 hours @ 105 degrees Celsius
  • Polarization: Polarized
  • Surface Mount Land Size: 0.260 inches length x 0.260 inches width
  • Mounting: Surface Mount
  • Package: Radial Can - SMD
  • Operating Temperature Range: -55 to 105 degrees Celsius
