Same model may have multiple batches, images only for reference.

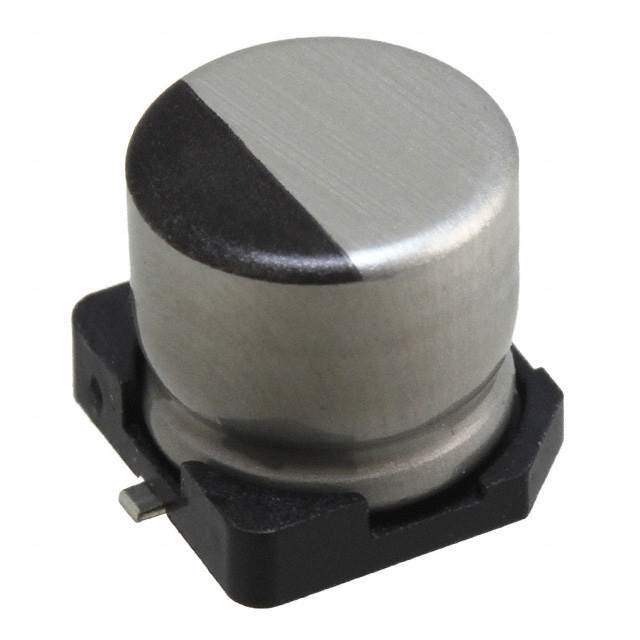

UWD1E680MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1E680MCL1GS

Part No UWD1E680MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 68UF 20% 25V SMD / 68 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1E680MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 115 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 100 kHz
Impedance 440 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340783-UWD1E680MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1E680MCL1GS CAD Model

Description

The Nichicon UWD Series Aluminum Electrolytic Capacitor is a high-quality electronic component that offers reliable performance with a capacitance of 68 μF and a voltage rating of 25V.

  • Capacitance: 68 μF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Impedance: 440 mOhms
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Packaging: Tape & Reel
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Standard Package: 1,000
