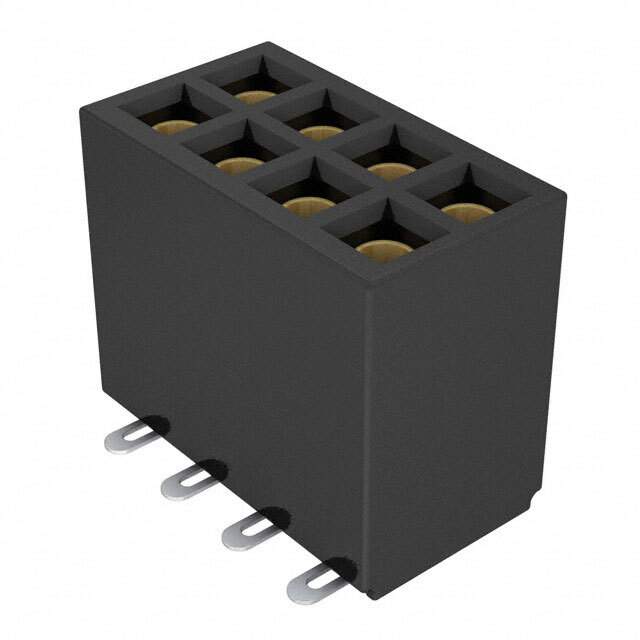

Same model may have multiple batches, images only for reference.

SFMC-104-02-H-D

Name: SFMC-104-02-H-D
Brand: Samtec Inc.
SKU: 1285501
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFMC-104-02-H-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMC-104-02-H-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	8
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SFMC-104
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285501-SFMC-104-02-H-D
Ultra Librarian 3D Model	Ultra Librarian SFMC-104-02-H-D CAD Model

Description

The Samtec Tiger Eye™ SFMC 1285501-SFMC-104-02-H-D is a female socket connector with 8 positions and 2 rows.

Pitch: 0.050" (1.27mm)
Applications: board to board or cable connections
Contact Material: beryllium copper
Contact Finish (Mating): gold
Contact Finish (Post): tin
Temperature Range: -55°C to 125°C
Current Rating: 2.9A per contact
Series: SFMC-104
Features: board lock and pick and place
