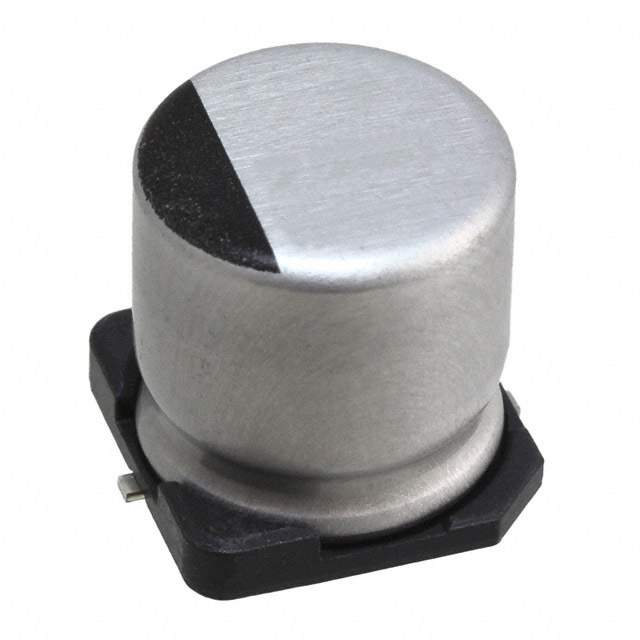

UWD1E471MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1E471MCL1GS

Part No UWD1E471MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1E471MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWD1E471MCL1GS-ND,493-9671-1,493-9671-2,493-9671-6
Standard Package 500
Win Source Part Number 1149320-UWD1E471MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1E471MCL1GS CAD Model

Description

The UWD1E471MCL1GS electronic component is a capacitor that falls under the category of aluminum electrolytic capacitors. It is part of the UWD series.

  • Category: Aluminum Electrolytic Capacitors
  • Series: UWD
  • Package: Tape and Reel
  • Capacitance: 470 microfarads
  • Voltage Rating: 25 volts
  • Polarity: Polar
  • Win Source Part Number: Specified
  • Cross-Reference: Specified
