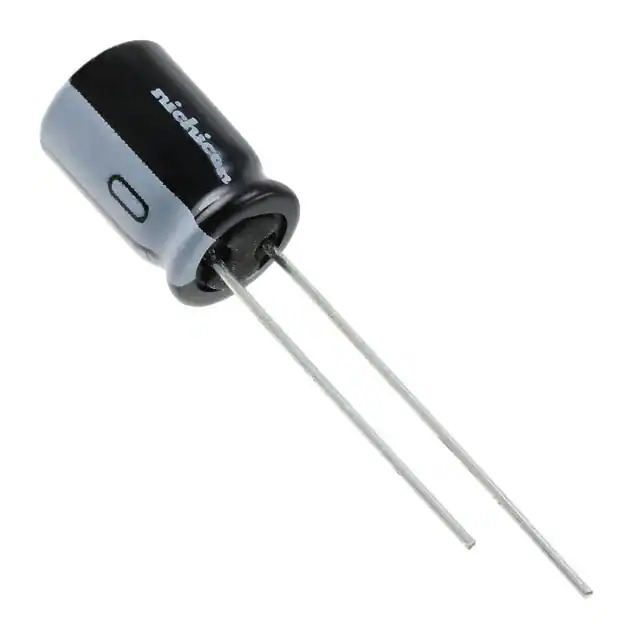

UVZ1H101MPD Nichicon
Same model may have multiple batches, images only for reference.

UVZ1H101MPD

Part No UVZ1H101MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V RADIAL / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ1H101MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 190 mA @ 120 Hz
Ripple Current @ High Frequency 285 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357646-UVZ1H101MPD
Ultra Librarian 3D Model Ultra Librarian UVZ1H101MPD CAD Model

Description

The Nichicon UVZ series aluminum electrolytic capacitor is designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 190 mA @ 120 Hz
  • Ripple Current (High Frequency): 285 mA @ 10 kHz
  • Lifetime: 1000 hours @ 105°C
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Lead Spacing: 3.50mm
  • Product Status: Not For New Designs
  • REACH Status: Unaffected
  • Manufacturer: Nichicon
