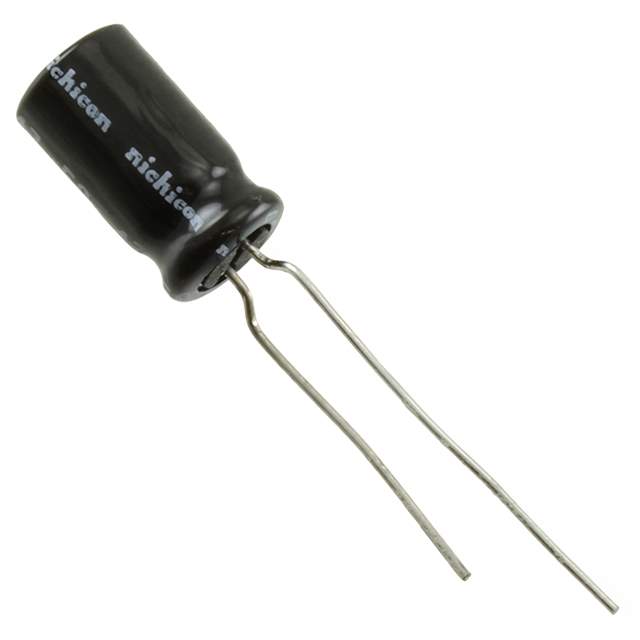

Same model may have multiple batches, images only for reference.

UVZ1C221MED

Name: UVZ1C221MED
Brand: Nichicon
SKU: 777872
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVZ1C221MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 16V RADIAL / Cap Aluminum Lytic 220uF 16V 20% (6.3 X 11mm) Radial 2.5mm 190mA 1000h 105°C Bulk
Datasheet	UVZ1C221MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UVZ
Packaging	Bulk
Capacitance	220μF
Tolerance	±20%
Voltage Rating DC	16V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	190mA @ 120Hz
Ripple Current - High Frequency	285mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777872-UVZ1C221MED
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UVZ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UVZ1C221MED CAD Model

Description

The Nichicon UVZ1C221MED is a medium-popularity product that belongs to the UVZ series.

Series: UVZ
Type: Polarized Radial, Can
Capacitance: 220μF
Voltage Rating DC: 16V
Ripple Current (Low Frequency): 190mA @ 120Hz
Ripple Current (High Frequency): 285mA @ 10kHz
Estimated EOL Date: 2027
Supply and Demand Status: Limited
