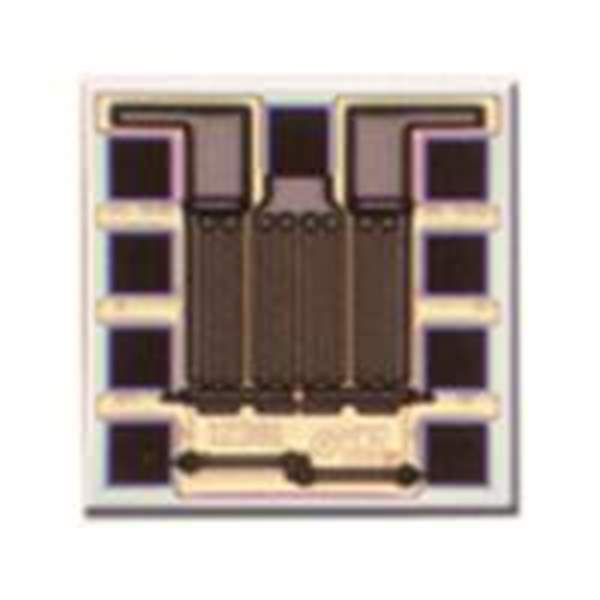

The HMC240A from Analog Devices is a high-performance, non-reflective Single Pole Double Throw (SPDT) switch that operates in the DC to 10 GHz frequency range. This switch is fabricated using a GaAs MESFET process, which ensures high isolation and low insertion loss, making it an ideal choice for a wide range of RF and microwave applications.

Key Features

• Frequency Range: The HMC240A operates effectively across a wide frequency range from DC to 10 GHz, accommodating various communication bands with ease.
• High Isolation: With an isolation of 50 dB typical at 2 GHz, the HMC240A ensures minimal crosstalk between the switched signals, preserving signal integrity and performance.
• Low Insertion Loss: The switch boasts a low insertion loss of 2.5 dB typical at 2 GHz, ensuring efficient signal transmission with minimal power loss.
• Non-Reflective Design: Its non-reflective nature allows for better signal management and reduces standing waves, which is crucial for maintaining signal quality in RF circuits.
• High Linearity: Exhibiting an input IP3 of +50 dBm, the HMC240A provides excellent linearity, making it suitable for high-performance applications where signal fidelity is paramount.
• Fast Switching Speed: The switch offers a fast switching speed of 10 ns, enabling quick transitions between signal paths, which is essential for time-critical applications.
• CMOS/TTL Compatible: The HMC240A is compatible with CMOS and TTL logic levels, allowing for easy integration into digital control systems.

Applications

The versatility of the HMC240A makes it suitable for a variety of applications, including:

• Test instrumentation
• Microwave radio and VSAT
• Military and space
• Fiber optic systems
• Broadband wireless access

Conclusion

The HMC240A from Analog Devices is a robust and reliable switch that offers exceptional performance for RF and microwave signal routing. Its broad frequency range, high isolation, low insertion loss, and fast switching speed make it an excellent choice for designers looking to enhance their systems with high-quality signal management solutions.
