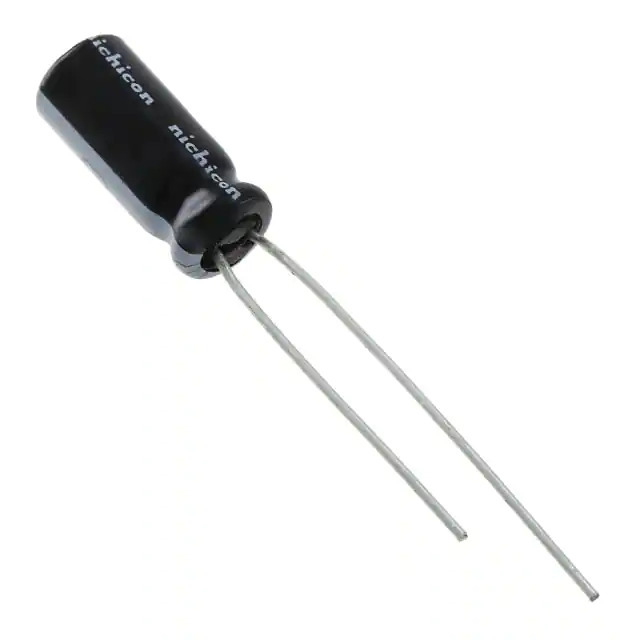

UVZ0J101MDD Nichicon
Same model may have multiple batches, images only for reference.

UVZ0J101MDD

Part No UVZ0J101MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 6.3V RADIAL / 100 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ0J101MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 95 mA @ 120 Hz
Ripple Current @ High Frequency 142.5 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358261-UVZ0J101MDD
Ultra Librarian 3D Model Ultra Librarian UVZ0J101MDD CAD Model

Description

The 1358261-UVZ0J101MDD is an aluminum electrolytic capacitor from the UVZ series of Nichicon.

  • Capacitance: 100 µF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • Polarized: Yes
  • Ripple Current (Low Frequency): 95 mA @ 120 Hz
  • Ripple Current (High Frequency): 142.5 mA @ 10 kHz
  • Lead Spacing: 2.00mm
  • Size: 5.00mm Diameter
  • Seated Height: 12.50mm
  • Lifetime: 1000 hours @ 105°C
  • Package: Radial, Can
  • Recommended For New Designs: No
  • REACH Status: Unaffected
