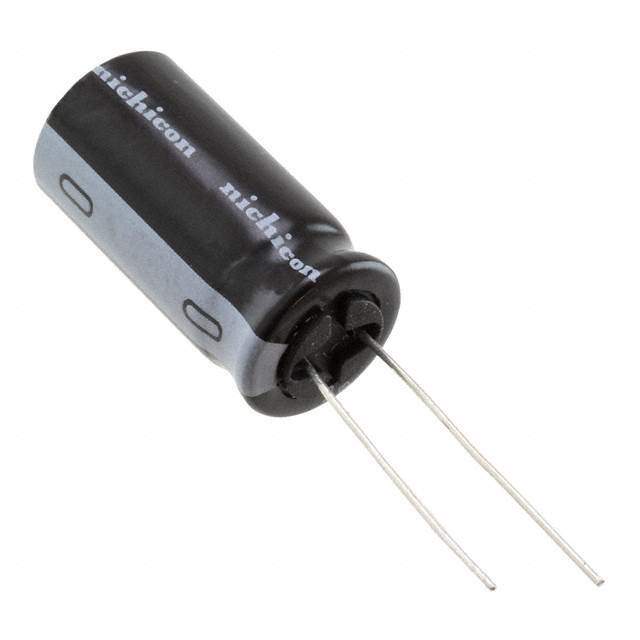

Same model may have multiple batches, images only for reference.

UVY2W220MHD1TO

Name: UVY2W220MHD1TO
Brand: Nichicon
SKU: 533969
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UVY2W220MHD1TO
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 450V RADIAL
Datasheet	UVY2W220MHD1TO Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	AMMO PACKAGE
Status	Active
Capacitance	22μF
Tolerance	±20%
Voltage Rating	450V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-25°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	100mA @ 120Hz
Ripple Current - High Frequency	160mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	1116783-UVY2W220MHD1TO
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UVY2W220MHD1TO CAD Model

Description

The Nichicon UVY2W220MHD1TO is a general-purpose capacitor with a capacitance of 22μF and a voltage rating of 450V.

Capacitance: 22μF
Voltage Rating: 450V
Tolerance: ±20%
Lead Spacing: 0.197" (5.00mm)
Ripple Current - Low Frequency: 100mA @ 120Hz
Ripple Current - High Frequency: 160mA @ 10kHz
Lifetime @ Temp.: 1000 Hrs @ 105°C
Polarized: Yes
Mounting Type: Through Hole
Height - Seated (Max): 1.063" (27.00mm)
Category: Capacitors
Package: Ammo Package
Manufacturer: Nichicon
