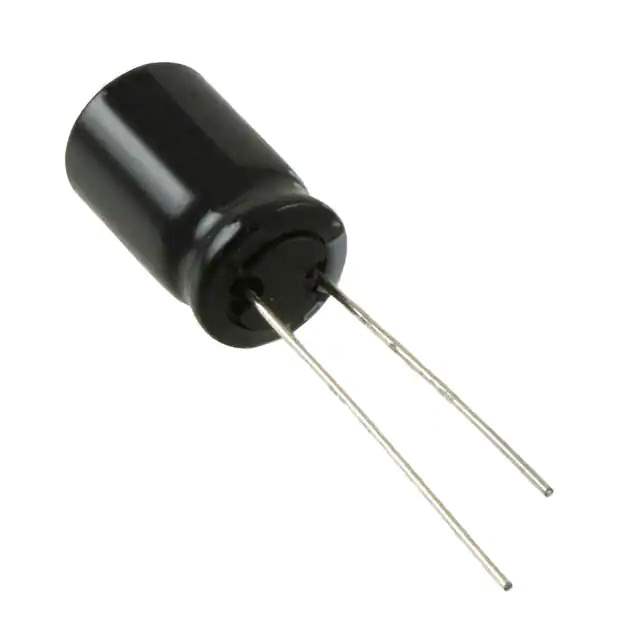

Same model may have multiple batches, images only for reference.

UVR2W3R3MPD

Name: UVR2W3R3MPD
Brand: Nichicon
SKU: 902366
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR2W3R3MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3.3UF 20% 450V RADIAL / 3.3 μF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	3.3 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	45 mA @ 120 Hz
Ripple Current @ High Frequency	72 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,800 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	902366-UVR2W3R3MPD
Ultra Librarian 3D Model	Ultra Librarian UVR2W3R3MPD CAD Model

Description

The UVR series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications from Nichicon.

Capacitance: 3.3 µF
Voltage Rating: 450 V
Diameter: 0.394 inches (10.00mm)
Height: 0.689 inches (17.50mm)
Mounting: Through-hole mounting
Tolerance: ±20%
Lifetime: 2000 hours @ 85°C
Type: Polarized
Package: 1800 pieces
