Same model may have multiple batches, images only for reference.

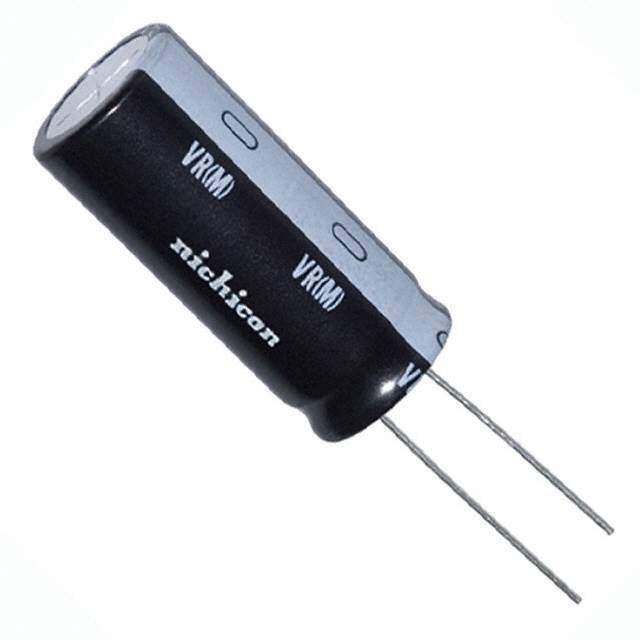

UVR2G221MRD Real Image
Same model may have multiple batches, images only for reference.

UVR2G221MRD

Part No UVR2G221MRD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 400V RADIAL / Cap Aluminum Lytic 220uF 400V 20% (25 X 50mm) Radial 12.5mm 750mA 2000h 85°C Bulk
Datasheet
UVR2G221MRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UVR
Packaging Bulk
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 400V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 750mA @ 120Hz
Ripple Current - High Frequency 1.2A @ 10kHz
Lead Spacing 0.492" (12.50mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 2.047" (52.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 777848-UVR2G221MRD
Popularity Medium
Supply and Demand Status Limited
Family Name UVR
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UVR2G221MRD CAD Model

Description

The Nichicon 777848-UVR2G221MRD is a radial, can type capacitor with a capacitance of 220μF and a voltage rating of 400V. It has a tolerance of ±20% and a lead spacing of 0.492" (12.50mm).

  • Capacitance: 220μF
  • Voltage Rating: 400V
  • Tolerance: ±20%
  • Lead Spacing: 0.492" (12.50mm)
  • Polarized: Yes
  • Mounting Type: Through-hole
  • Series: UVR
  • Family: UVR
  • Category: Capacitors
  • ECCN: EAR99
  • Operating Temperature Range: -40°C ~ 85°C
  • Supply and Demand Status: Limited
  • Lifetime: 2000 Hrs @ 85°C
  • Dimension: 0.984" Dia (25.00mm)
  • Ripple Current (Low Frequency): 750mA @ 120Hz
  • Ripple Current (High Frequency): 1.2A @ 10kHz
  • Height (Seated): 2.047" (52.00mm)
  • Alternative Part Number: UVR2G221MRA
  • Introduction Date: September 12, 2003
  • Country of Origin: China, Japan, Malaysia
  • Estimated EOL Date: 2027
