Same model may have multiple batches, images only for reference.

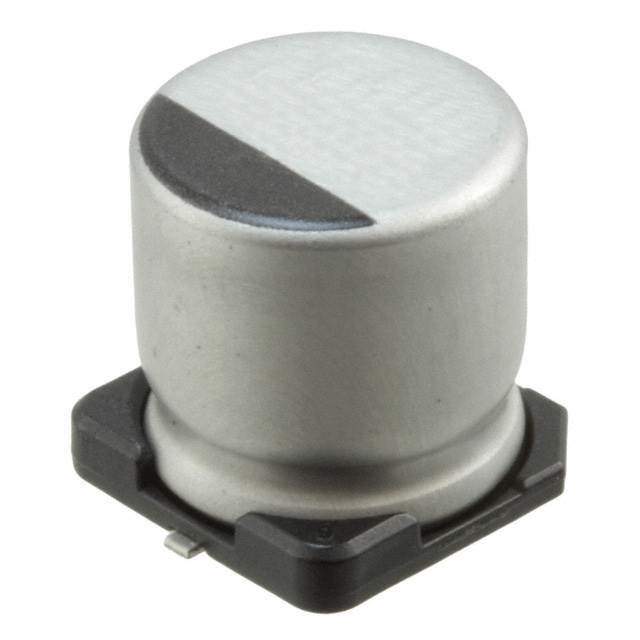

UUX1H470MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUX1H470MNL1GS

Part No UUX1H470MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Datasheet
UUX1H470MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUX
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 300.6 mA @ 10 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names UUX1H470MNL1GS,493-6271-6,493-6271-1,493-6271-2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307337-UUX1H470MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUX1H470MNL1GS CAD Model

Description

The Nichicon UUX1H470MNL1GS is a 47 µF, 50 V aluminum electrolytic capacitor that is ideal for use in general-purpose applications.

  • Capacitance: 47 µF
  • Voltage: 50 V
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can-SMD
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Ripple Current (Low Frequency): 180 mA @ 120 Hz
  • Ripple Current (High Frequency): 300.6 mA @ 10 kHz
