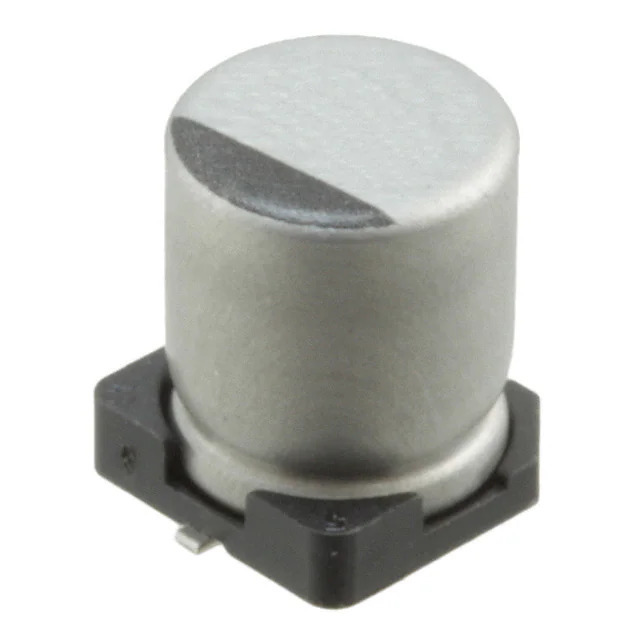

The UUR series aluminum electrolytic capacitor from Nichicon is a high-quality component designed for general-purpose applications. The Nichicon UUR series capacitor has a capacitance of 150 μF and a voltage rating of 16 V, this capacitor provides reliable performance in a wide range of electronic devices.

• Series: UUR
• Capacitance: 150 μF
• Voltage - Rated: 16 V
• Tolerance: ±20%
• Ripple Current @ Low Frequency: 151 mA @ 120 Hz
• Ripple Current @ High Frequency: 196.3 mA @ 10 kHz
• Size / Dimension: 0.248" (6.30mm)
• Height - Seated (Max): 0.315" (8.00mm)
• Mounting Type: Surface Mount
• Lifetime @ Temp.: 2000 Hrs @ 85°C
• Packaging: Tape & Reel (TR)
• REACH: Unaffected
• ECCN: EAR99
