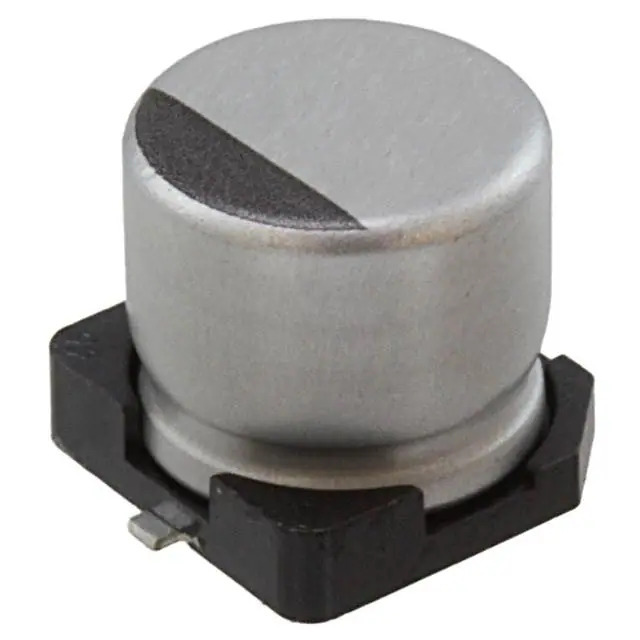

UUL1H100MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUL1H100MCL1GS

Part No UUL1H100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UUL1H100MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUL
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 45 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360229-UUL1H100MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUL1H100MCL1GS CAD Model

Description

The Nichicon UUL1H100MCL1GS is a surface mount aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 50 V.

  • Series: UUL
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Diameter: 6.30mm
  • Height: 6.10mm
  • ESR: Low
  • Ripple Current (Low Frequency): 30 mA @ 120 Hz
  • Ripple Current (High Frequency): 45 mA @ 10 kHz
  • Package: Tape and Reel
  • Mounting: Surface Mount
  • Manufacturer: Nichicon
