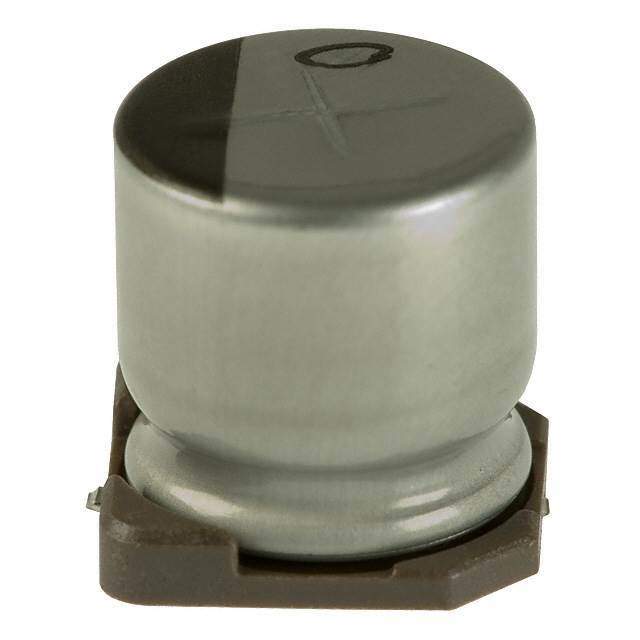

Same model may have multiple batches, images only for reference.

UUD1V331MNR1GS

Name: UUD1V331MNR1GS
Brand: Nichicon
SKU: 396886
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUD1V331MNR1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V SMD
Datasheet	UUD1V331MNR1GS Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Reel - TR
Status	Obsolete(EOL)
Capacitance	330μF
Tolerance	±20%
Voltage Rating	35V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	335mA @ 120Hz
Ripple Current - High Frequency	670mA @ 100kHz
Impedance	90 mOhm
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Dimension	Radial, Can - SMD
Win Source Part Number	053052-UUD1V331MNR1GS
Popularity	Medium
Supply and Demand Status	Limited
Application Field	Used in Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model	Ultra Librarian UUD1V331MNR1GS CAD Model

Description

The Nichicon UUD1V331MNR1GS is an obsolete (EOL) electronic component.

Status: Obsolete (EOL)
Capacitance: 330μF
Voltage Rating: 35V
Mounting Type: Surface Mountable
Package: Radial, Can - SMD
Tolerance: ±20%
Impedance: 90 mOhm
Ripple Current: 335mA @ 120Hz (low frequency) and 670mA @ 100kHz (high frequency)
Temperature Range: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Applications: Automotive, Industrial, Power Management, Consumer Electronics, and Portable Devices
