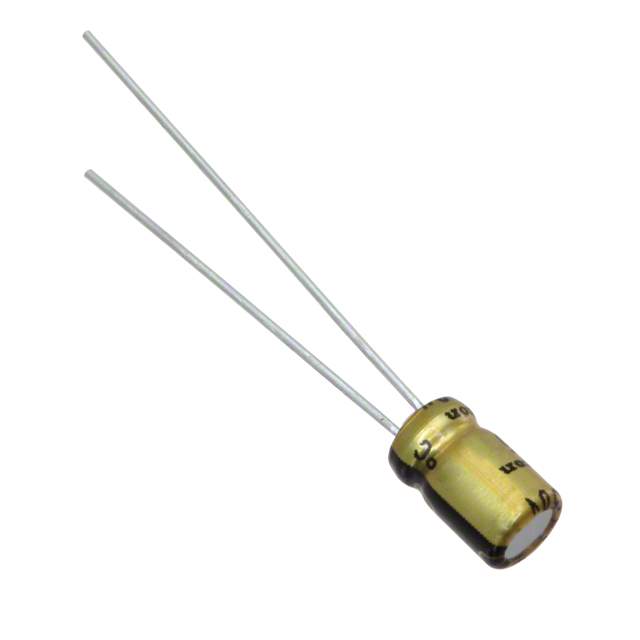

Same model may have multiple batches, images only for reference.

USW1C101MDD

Name: USW1C101MDD
Brand: Nichicon
SKU: 810415
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	USW1C101MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 16V RADIAL / ALUMINUM ELECTROLYTIC CAPACITORS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Bulk
Capacitance	100μF
Tolerance	±20%
Voltage - Rated	16V
Lifetime at Temp.	1000 Hrs at 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	Audio
Ripple Current at Low Frequency	98mA at 120Hz
Ripple Current at High Frequency	147mA at 10kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can
Manufacturer Pack Quantity	200
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810418-USW1C101MDD
Ultra Librarian 3D Model	Ultra Librarian USW1C101MDD CAD Model

Description

The Nichicon 810418-USW1C101MDD is a high-quality capacitor that is designed for use in various audio applications.

Packaging Type: Bulk
Mounting: Through Hole
Capacitance: 100μF
Tolerance: ±20%
Voltage - Rated: 16V
Lead Spacing: 0.098" (2.50mm)
Polarization: Polar
Surface Mount Land Size: -
Temperature Range - Operating: -40°C ~ 85°C
Dimension: 0.248" Dia (6.30mm)
Manufacturer Package: Radial, Can
Height - Seated (Maximum): 0.315" (8.00mm)
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 200
MSL Level: 1 (Unlimited)
Lifetime at Temp.: 1000 Hrs @ 85°C
Ripple Current at Low Frequency: 98mA @ 120Hz
Ripple Current at High Frequency: 147mA @ 10kHz
