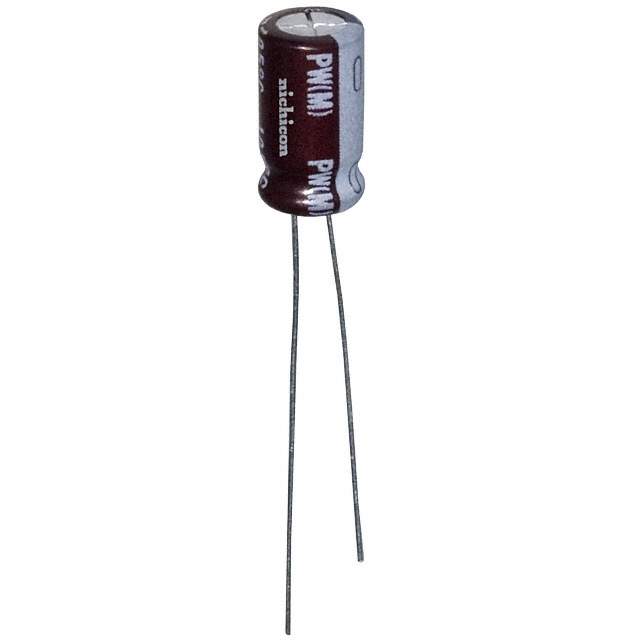

Same model may have multiple batches, images only for reference.

UPW2A100MED

Name: UPW2A100MED
Brand: Nichicon
SKU: 1103404
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPW2A100MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 100V RADIAL / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	39 mA @ 120 Hz
Ripple Current @ High Frequency	130 mA @ 100 kHz
Impedance	1.8 Ohms
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1967,3845-UPW2A100MED
Standard Package	4,000
Win Source Part Number	1103404-UPW2A100MED
Ultra Librarian 3D Model	Ultra Librarian UPW2A100MED CAD Model

Description

The UPW2A100MED is an aluminum electrolytic capacitor from Nichicon's UPW series, which is designed for general-purpose applications.

Mounting Type: through-hole
Capacitance: 10 µF
Voltage Rating: 100 V
Tolerance: ±20%
Impedance: 1.8 Ohms
RoHS Compliant: yes
Ripple Current: 39 mA @ 120 Hz and 130 mA @ 100 kHz
Supplied in: bulk with a standard package of 4,000
Height: 0.433 inches
Diameter: 0.248 inches
