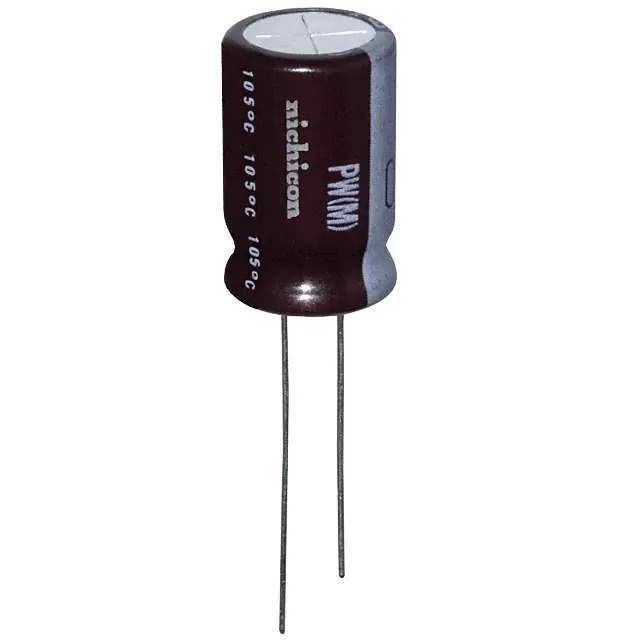

Same model may have multiple batches, images only for reference.

UPW1V681MHD

Name: UPW1V681MHD
Brand: Nichicon
SKU: 902268
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1V681MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 35V RADIAL / 680 μF 35 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet	UPW1V681MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	7000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.245 A @ 120 Hz
Ripple Current @ High Frequency	1.66 A @ 100 kHz
Impedance	38 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	902268-UPW1V681MHD
Ultra Librarian 3D Model	Ultra Librarian UPW1V681MHD CAD Model

Description

The UPW1V681MHD is an aluminum electrolytic capacitor from the UPW series.

Capacitance: 680μF
Voltage Rating: 35V
Application: general-purpose applications
Mounting: through-hole mounting
Size: 0.492" diameter (12.50mm)
Seated Height: 0.787" (20.00mm)
Impedance: 38 mOhms
Lifetime: 7000 hours @ 105°C
Manufacturer: Nichicon
Standard Package: 1,000 pcs
Temperature Range: -55°C to 105°C
