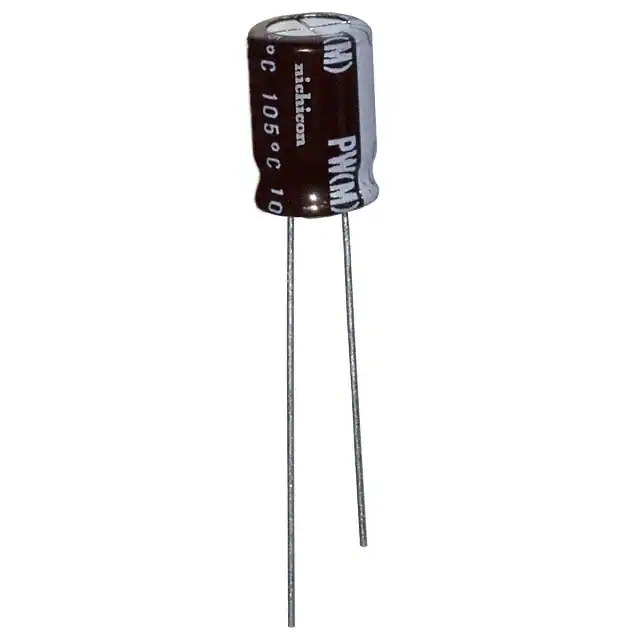

Same model may have multiple batches, images only for reference.

UPW1V151MPD

Name: UPW1V151MPD
Brand: Nichicon
SKU: 1358039
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1V151MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 35V RADIAL / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Datasheet	UPW1V151MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	360.75 mA @ 120 Hz
Impedance	117 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.453" (11.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358039-UPW1V151MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1V151MPD CAD Model

Description

The Nichicon UPW1V151MPD is a through-hole aluminum electrolytic capacitor with a capacitance of 150 µF and a voltage rating of 35 V.

Series: UPW
Application: General Purpose
Capacitance: 150 µF
Voltage Rating: 35 V
Temperature Range: -55°C to 105°C
Lifetime: 3000 hours @ 105°C
Diameter: 8.00mm
Height: 11.50mm
Ripple Current (Low Frequency): 360.75 mA @ 120 Hz
Lead Spacing: 3.50mm
Package: Bulk
Manufacturer: Nichicon
Status: Not Recommended for New Designs
