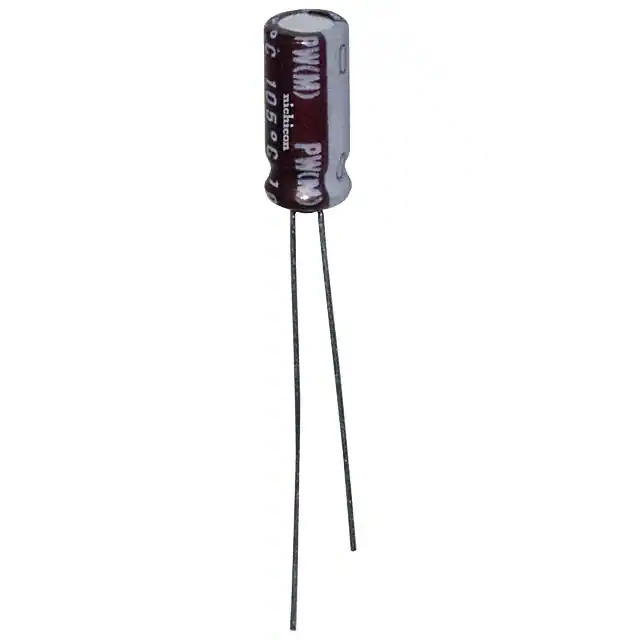

Same model may have multiple batches, images only for reference.
UPW1H010MDD Nichicon
Same model may have multiple batches, images only for reference.

UPW1H010MDD

Part No UPW1H010MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V RADIAL / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
UPW1H010MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Obsolete
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 12 mA @ 120 Hz
Ripple Current @ High Frequency 40 mA @ 100 kHz
Impedance 3.5 Ohms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358162-UPW1H010MDD
Ultra Librarian 3D Model Ultra Librarian UPW1H010MDD CAD Model

Description

The UPW1H010MDD is a radial, can-type aluminum electrolytic capacitor from Nichicon's UPW series. It has a capacitance of 1 μF and a voltage rating of 50 V. With a tolerance of ±20%, this capacitor is suitable for general-purpose applications.

  • Manufacturer: Nichicon
  • Product Name: UPW1H010MDD
  • Capacitance: 1 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 12 mA @ 120 Hz
  • Ripple Current (High Frequency): 40 mA @ 100 kHz
  • Lead Spacing: 0.079" (2.00mm)
  • Diameter: 0.197" (5.00mm)
  • Height: 0.433" (11.00mm)
  • Lifetime: 2000 hours @ 105°C
  • Mounting Type: Through Hole
  • Polarity: Polarized
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Obsolete
  • Packaging: Bulk
