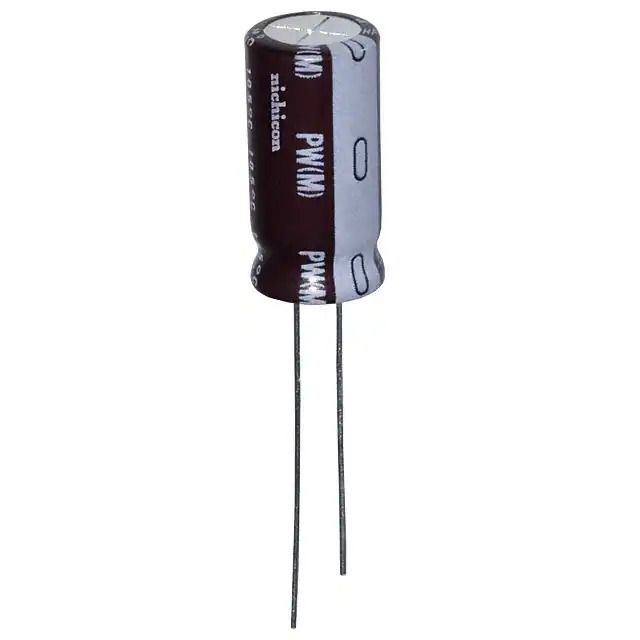

Same model may have multiple batches, images only for reference.

UPW1C102MPD

Name: UPW1C102MPD
Brand: Nichicon
SKU: 1358109
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPW1C102MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPW1C102MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	915 mA @ 120 Hz
Ripple Current @ High Frequency	1.22 A @ 100 kHz
Impedance	52 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358109-UPW1C102MPD
Ultra Librarian 3D Model	Ultra Librarian UPW1C102MPD CAD Model

Description

The Nichicon UPW1C102MPD is a radial aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 16 V.

Capacitance: 1000 µF
Voltage Rating: 16 V
Tolerance: ±20%
Application: General Purpose
Ripple Current (Low Frequency): 915 mA @ 120 Hz
Ripple Current (High Frequency): 1.22 A @ 100 kHz
Lead Spacing: 0.197" (5.00mm)
Size/Dimension: 0.394" Dia (10.00mm)
Mounting Type: Through Hole
Height: 0.787" (20.00mm)
Lifetime: 5000 Hours @ 105°C
Series: UPW
Status: Not for New Designs
Packaging: Bulk
REACH: Unaffected
