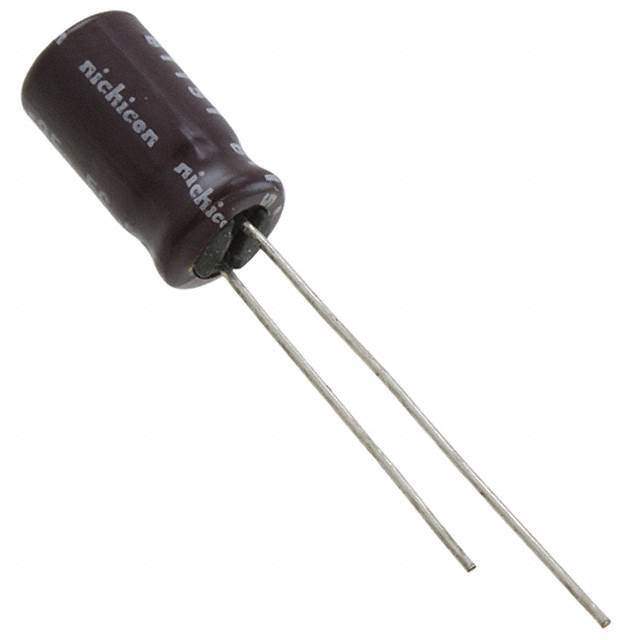

UPM1V470MED1TD Real Image
Same model may have multiple batches, images only for reference.

UPM1V470MED1TD

Part No UPM1V470MED1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 35V RADIAL / 47 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 160 mA @ 120 Hz
Ripple Current @ High Frequency 270 mA @ 10 kHz
Impedance 340 mOhms
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11608-1,493-11608-3
Standard Package 2,000
Win Source Part Number 1017723-UPM1V470MED1TD
Ultra Librarian 3D Model Ultra Librarian UPM1V470MED1TD CAD Model

Description

The UPM1V470MED1TD aluminum electrolytic capacitor is a reliable component for general-purpose applications.

  • Manufacturer: Unknown
  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • Mounting Type: Through-Hole
  • Package: Radial
  • Operating Temperature: -55°C to 105°C
  • Package: Cut Tape (CT), Tape & Box (TB)
  • Standard Package: 2,000
  • Lead Spacing: 0.098"
  • Height: 0.492"
  • HTSUS: 8532.22.0020
  • ECCN: EAR99
