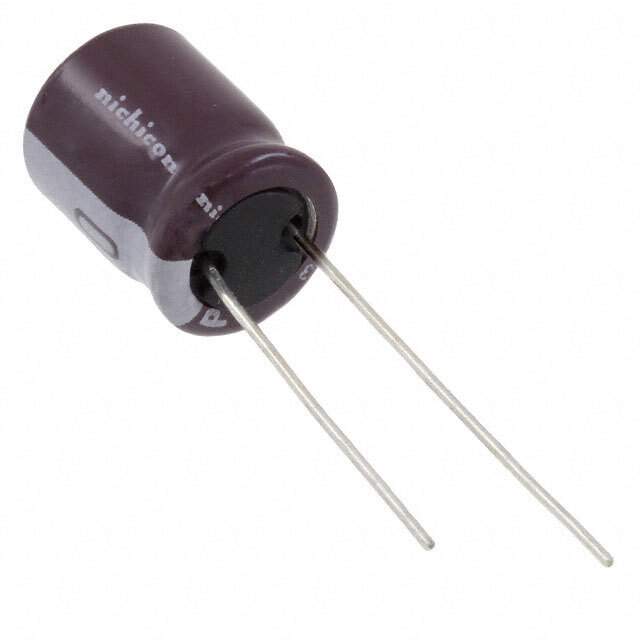

Same model may have multiple batches, images only for reference.

UPM1V151MPD6TD

Get a Quote

Part No	UPM1V151MPD6TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 35V RADIAL / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	475 mA @ 120 Hz
Impedance	120 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-11795-3,493-11795-1
Standard Package	500
Win Source Part Number	1031356-UPM1V151MPD6TD
Ultra Librarian 3D Model	Ultra Librarian UPM1V151MPD6TD CAD Model

Description

The UPM1V151MPD6TD is a radial, can type aluminum electrolytic capacitor with a capacitance of 150 µF and a voltage rating of 35V manufactured by Nichicon.

Capacitance: 150 µF
Voltage Rating: 35V
Tolerance: ±20%
Maximum Height: 0.571" (14.50mm)
Operating Temperature: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Polarization: Polar
Lead Spacing: 0.197" (5.00mm)
Standard Package: 500
Impedance: 120 mOhms
Ripple Current: 475 mA @ 120 Hz
