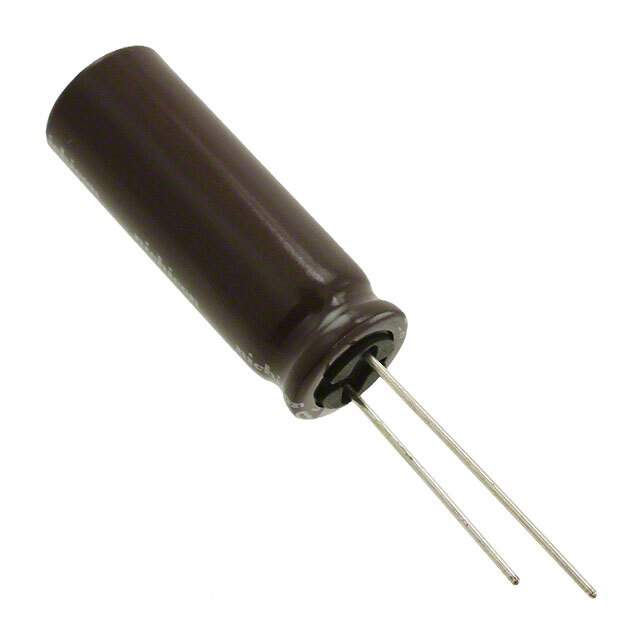

Same model may have multiple batches, images only for reference.

UPM1J471MHD

Name: UPM1J471MHD
Brand: Nichicon
SKU: 984882
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1J471MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 63V RADIAL / 470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.42 A @ 120 Hz
Ripple Current @ High Frequency	1.78 A @ 10 kHz
Impedance	39 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.476" (37.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-7344,UPM1J471MHD-ND
Standard Package	500
Win Source Part Number	984882-UPM1J471MHD
Ultra Librarian 3D Model	Ultra Librarian UPM1J471MHD CAD Model

Description

The Nichicon UPM series aluminum electrolytic capacitor is a high-quality and reliable component suitable for various applications.

Capacitance: 470 µF
Voltage Rating: 63 V
Tolerance: ±20%
Impedance: 39 mOhms
ESR: Not specified
Package: Radial can
Diameter: 0.492" (12.50mm)
Height: 1.476" (37.50mm)
Lead Spacing: 0.197" (5.00mm)
Mounting: Through-hole
Operating Temperature: -55°C to 105°C
Lifetime: 5000 hours @ 105°C
Polarization: Polarized
Status: Not for new designs
