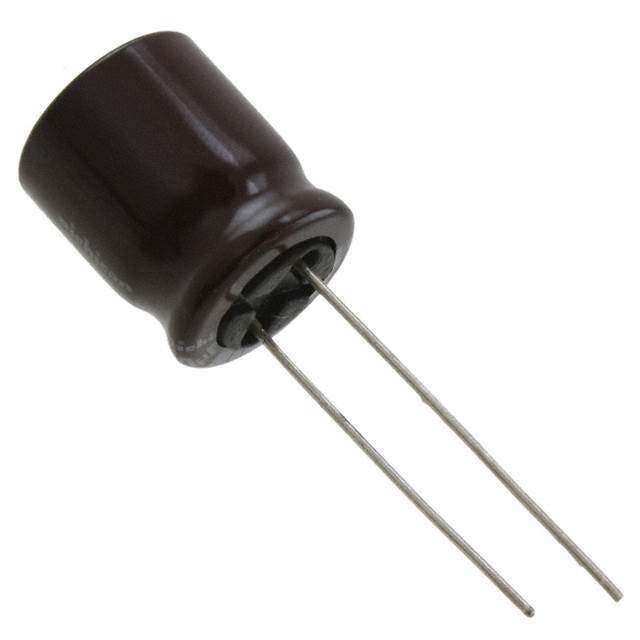

Same model may have multiple batches, images only for reference.

UPM1J100MDD1TA

Name: UPM1J100MDD1TA
Brand: Nichicon
SKU: 1192840
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1J100MDD1TA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 63V RADIAL / 10 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	67 mA @ 120 Hz
Ripple Current @ High Frequency	135 mA @ 10 kHz
Impedance	1.06 Ohms
Lead Spacing	0.197" (5.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPM1J100MDD1TA-ND,493-15759-3,493-15759-2,493-15759-1,493-15759-2-ND
Standard Package	2,000
Win Source Part Number	1192840-UPM1J100MDD1TA
Ultra Librarian 3D Model	Ultra Librarian UPM1J100MDD1TA CAD Model

Description

This aluminum electrolytic capacitor is manufactured by Nichicon.

Capacitance: 10µF
Voltage Rating: 63V
Tolerance: ±20%
Lead Spacing: 0.197 inches
Impedance: 1.06 ohms
Ripple Current: 67mA @ Low Frequency, 135mA @ High Frequency
Package/Case: Radial, Can
Operating Temperature: -55°C to 105°C
