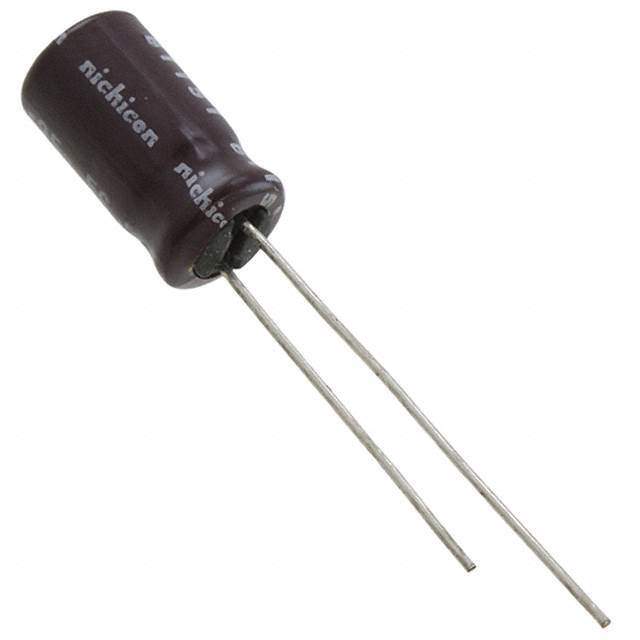

Same model may have multiple batches, images only for reference.

UPM1H330MED

Name: UPM1H330MED
Brand: Nichicon
SKU: 1339746
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1H330MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 50V RADIAL / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPM1H330MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Obsolete
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	135 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 10 kHz
Impedance	430 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	4,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339746-UPM1H330MED
Ultra Librarian 3D Model	Ultra Librarian UPM1H330MED CAD Model

Description

The Nichicon UPM series aluminum electrolytic capacitor is a radial, can type capacitor with a capacitance of 33 µF and a voltage rating of 50V.

Series: UPM
Manufacturer: Nichicon
Capacitance: 33 µF
Voltage Rating: 50V
Tolerance: ±20%
Lead Spacing: 0.098" (2.50mm)
Application: General-Purpose
Height: 0.492" (12.50mm)
Diameter: 0.248" (6.30mm)
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
