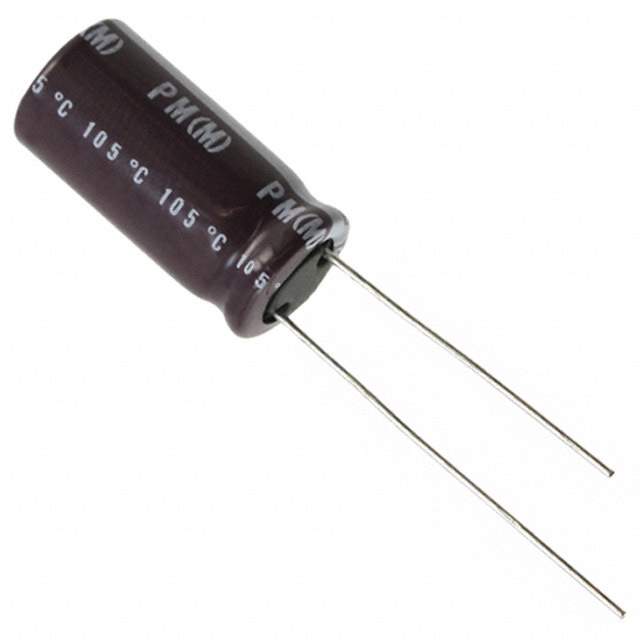

Same model may have multiple batches, images only for reference.

UPM1E471MPD

Name: UPM1E471MPD
Brand: Nichicon
SKU: 993348
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1E471MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	845 mA @ 120 Hz
Ripple Current @ High Frequency	1.06 A @ 10 kHz
Impedance	65 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	1,400
Win Source Part Number	993348-UPM1E471MPD
Ultra Librarian 3D Model	Ultra Librarian UPM1E471MPD CAD Model

Description

The UPM1E471MPD is an aluminum electrolytic capacitor manufactured by Nichicon.

Capacitance: 470 µF
Voltage Rating: 25 V
Application: General-Purpose
Impedance: 65 mOhms
Lifetime: 5000 hours @ 105°C
Polarized: Yes
Package: Radial, Can
Supply and Demand Status: Shortage
