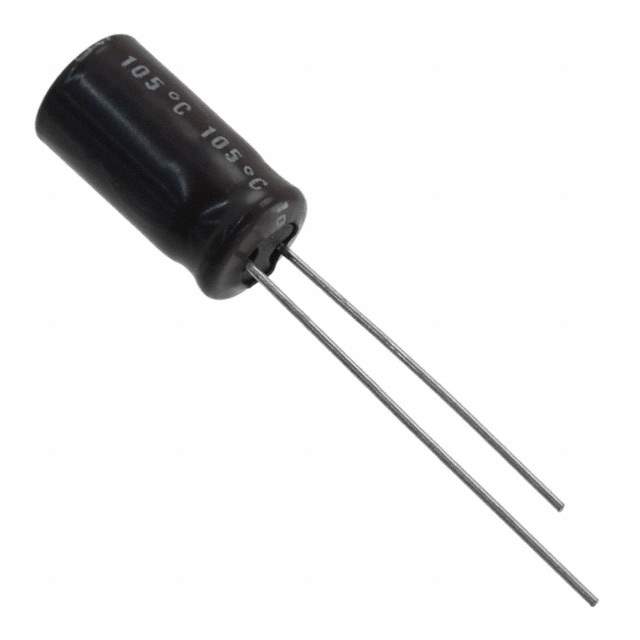

Same model may have multiple batches, images only for reference.

UPM1E221MPD

Name: UPM1E221MPD
Brand: Nichicon
SKU: 1199548
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPM1E221MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 25V RADIAL / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Bulk
Product Status	Not For New Designs
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	455 mA @ 120 Hz
Impedance	110 mOhms
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	2,000
Win Source Part Number	1199548-UPM1E221MPD
Ultra Librarian 3D Model	Ultra Librarian UPM1E221MPD CAD Model

Description

This electronic component is a capacitor belonging to the UPM series from Nichicon.

Win Source Part Number: 1199548-UPM1E221MPD
Application: General Purpose
Capacitance: 220 µF
Tolerance: ±20%
Voltage Rating: 25 V
Lead Spacing: 0.138" (3.50mm)
MSL Level: Not Applicable
REACH Status: Unaffected
Suitable for New Designs: No
