Same model may have multiple batches, images only for reference.

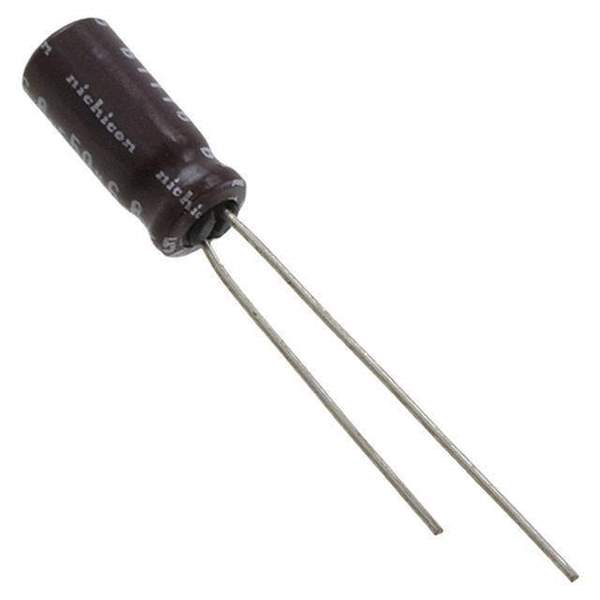

UPM1C470MDD Real Image
Same model may have multiple batches, images only for reference.

UPM1C470MDD

Part No UPM1C470MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 16V RADIAL / 47 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 92 mA @ 120 Hz
Ripple Current @ High Frequency 155 mA @ 10 kHz
Impedance 800 mOhms
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UPM1C470MDD-ND,493-15714
Standard Package 6,000
Win Source Part Number 1151377-UPM1C470MDD
Ultra Librarian 3D Model Ultra Librarian UPM1C470MDD CAD Model

Description

The UPM1C470MDD from Nichicon is an aluminum electrolytic capacitor from the UPM series.

  • Series: UPM
  • Capacitance: 47 μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Impedance: 800 mOhms
  • Height-Seated (max): 0.492" (12.50mm)
  • Mounting: Through-Hole
  • Type: General-Purpose
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
