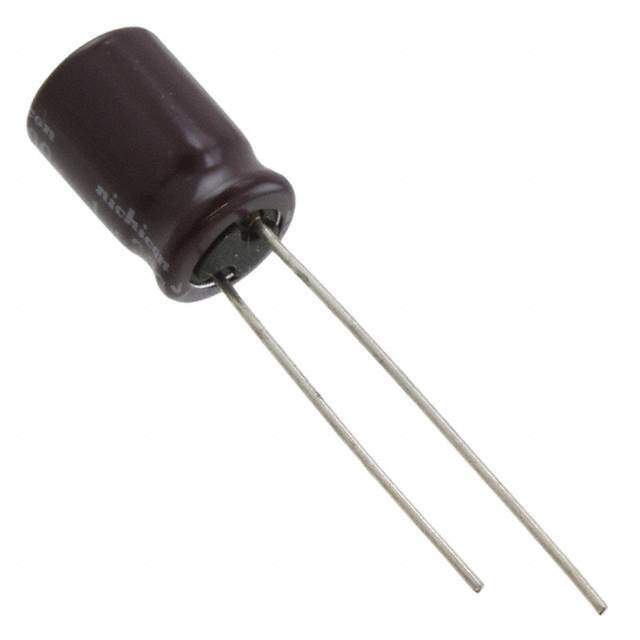

UPM1C221MPD Real Image
Same model may have multiple batches, images only for reference.

UPM1C221MPD

Part No UPM1C221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V RADIAL / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Impedance 160 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UPM1C221MPD-ND,493-15710
Standard Package 3,000
Win Source Part Number 994158-UPM1C221MPD
Ultra Librarian 3D Model Ultra Librarian UPM1C221MPD CAD Model

Description

The Nichicon UPM1C221MPD is an aluminum electrolytic capacitor that has a capacitance of 220 μF and a voltage rating of 16 V.

  • Capacitance: 220 μF
  • Voltage Rating: 16 V
  • Product Package: Radial, Can
  • Standard Package: 3,000
  • Polarized: Yes
  • Tolerance: ±20%
  • Ripple Current: 335 mA @ 120 Hz
