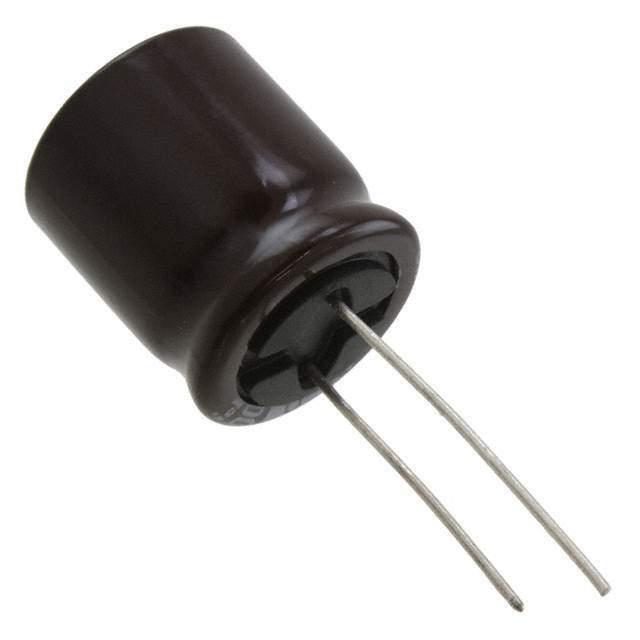

The UPJ1E222MHD6TN is an aluminum electrolytic capacitor manufactured by Nichicon. It is part of the UPJ series, which is known for its low impedance and high ripple current capabilities. These capacitors are commonly used in various electronic devices for smoothing, filtering, and decoupling applications.

Applications

• Power supplies
• Inverters
• DC-DC converters
• Audio equipment
• LED lighting
• Industrial equipment

Features

• Low impedance
• High ripple current capability
• Long life: Up to 5000 hours at 105°C
• High reliability
• RoHS compliant
• Operating temperature range: -40°C to +105°C
• Rated voltage: 25V
• Capacitance: 2200µF

Benefits

• Improved filtering and smoothing performance due to low impedance
• Ability to handle high current loads without overheating
• Extended lifespan, reducing the need for frequent replacements
• Increased system reliability
• Environmentally friendly due to RoHS compliance
• Stable performance over a wide temperature range
• Suitable for various voltage requirements
• High capacitance for effective energy storage

Additional Details

The UPJ1E222MHD6TN capacitor is designed for applications where low impedance and high ripple current are critical. Its low impedance characteristic ensures efficient filtering and smoothing of electrical signals, leading to improved performance in power supplies and other circuits. The high ripple current capability allows it to handle large current fluctuations without significant temperature rise, ensuring stable and reliable operation. The long life rating of up to 5000 hours at 105°C makes it suitable for demanding environments and applications requiring long-term reliability. The RoHS compliance ensures that the capacitor is free from hazardous substances, making it environmentally friendly. With a rated voltage of 25V and a capacitance of 2200µF, this capacitor is well-suited for various applications requiring a balance of voltage and capacitance. The operating temperature range of -40°C to +105°C allows it to be used in a wide range of environmental conditions. The capacitor is commonly used in power supplies, inverters, DC-DC converters, and other electronic devices where high performance and reliability are essential. Its robust design and high-quality construction ensure consistent and dependable performance over its lifespan. The radial lead configuration allows for easy mounting on PCBs.
