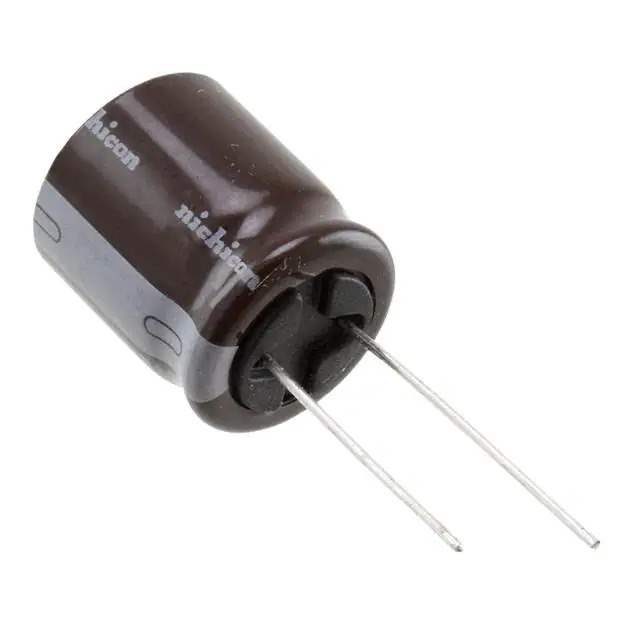

Same model may have multiple batches, images only for reference.

UPA1V222MHD6

Name: UPA1V222MHD6
Brand: Nichicon
SKU: 938210
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPA1V222MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 35V RADIAL / 2200 μF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPA1V222MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPA
Package	Bulk
Product Status	Active
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.244 A @ 120 Hz
Ripple Current @ High Frequency	2.64 A @ 100 kHz
Impedance	25 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	400 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	938210-UPA1V222MHD6
Ultra Librarian 3D Model	Ultra Librarian UPA1V222MHD6 CAD Model

Description

The 864809 is an aluminum electrolytic capacitor from the UPA series by Nichicon.

Series: UPA
Type: general-purpose capacitor
Capacitance: 2200μF
Voltage Rating: 35V
Package: radial, can
Size: 0.709" Dia (18.00mm)
Height: 0.866" (22.00mm)
Lead Spacing: 0.295" (7.50mm)
Impedance: 25 mOhms
Lifetime: 5000 hours @ 105°C
Temperature Range: -55°C to 105°C
Polarization: polarized
Mounting: through-hole
