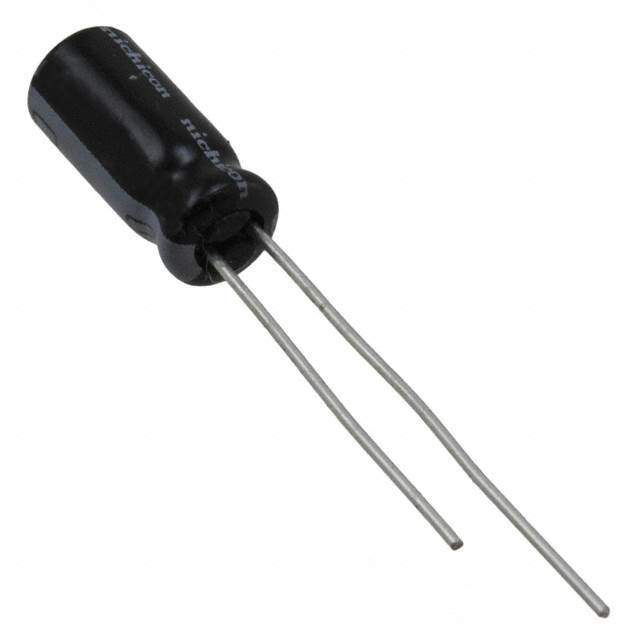

Same model may have multiple batches, images only for reference.

UKL2A010KDD1TD

Get a Quote

Part No	UKL2A010KDD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1UF 20% 100V RADIAL / 1 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	UKL2A010KDD1TD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UKL
Package	Tape & Box (TB)
Product Status	Obsolete
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	19 mA @ 120 Hz
Ripple Current @ High Frequency	38 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340205-UKL2A010KDD1TD
Ultra Librarian 3D Model	Ultra Librarian UKL2A010KDD1TD CAD Model

Description

The aluminum electrolytic capacitor with the Win Source Part Number 1340205-UKL2A010KDD1TD is a general-purpose capacitor designed to be used in various applications.

Capacitance: 1μF
Voltage Rating: 100V
Package: packaged in tape and box (TB)
Size/Dimension: 0.197" dia (5.00mm)
Height: 0.472" (12.00mm) when seated
Tolerance: ±20%
Polarization: polarized
Ripple Current: 19mA @ 120Hz at low frequency and 38mA @ 10kHz at high frequency
Lifetime: 2000 hours @ 85°C
HTSUS: 8532.22.0020 compliant
Status: obsolete
