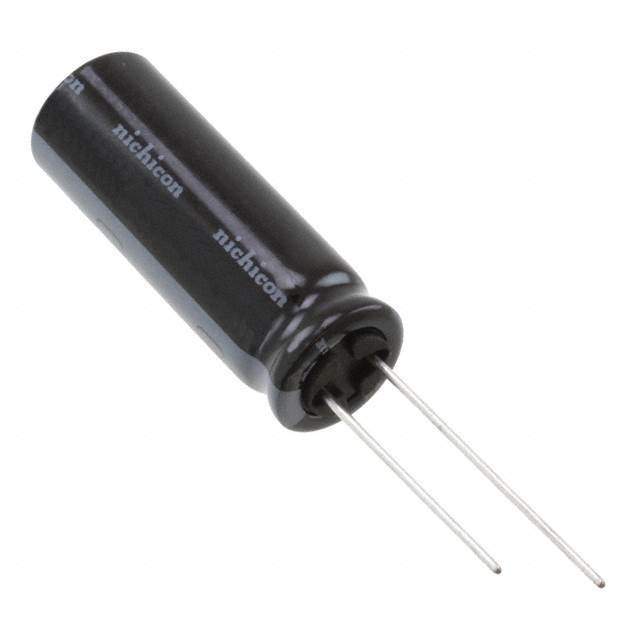

Same model may have multiple batches, images only for reference.

UHW1V222MHD

Name: UHW1V222MHD
Brand: Nichicon
SKU: 1337859
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHW1V222MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 35V RADIAL / 2200 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHW1V222MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHW
Package	Bulk
Product Status	Not For New Designs
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	3.09 A @ 120 Hz
Ripple Current @ High Frequency	4.12 A @ 100 kHz
Impedance	11 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.476" (37.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337859-UHW1V222MHD
Ultra Librarian 3D Model	Ultra Librarian UHW1V222MHD CAD Model

Description

The UHW1V222MHD electronic component is an aluminum electrolytic capacitor with a capacitance of 2200µF and a voltage rating of 35V.

Manufacturer: Nichicon
Win Source Part Number: 1337859-UHW1V222MHD
Series: UHW
Mounting Type: Through Hole
Package: Radial, Can
Application: General Purpose
Height Seated (Max): 1.476" (37.50mm)
Lead Spacing: 0.197" (5.00mm)
Tolerance: ±20%
Lifetime: 10000 Hrs @ 105°C
