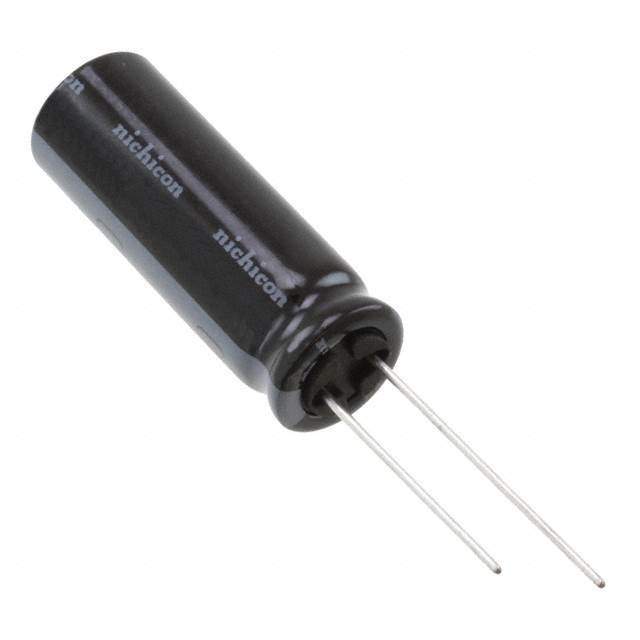

Same model may have multiple batches, images only for reference.

UHW1J331MPD

Name: UHW1J331MPD
Brand: Nichicon
SKU: 1172885
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHW1J331MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 63V RADIAL / 330 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHW1J331MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHW
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	63 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	995 mA @ 120 Hz
Ripple Current @ High Frequency	1.99 A @ 100 kHz
Impedance	72 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-17830
Standard Package	1,200
Win Source Part Number	1172885-UHW1J331MPD
Ultra Librarian 3D Model	Ultra Librarian UHW1J331MPD CAD Model

Description

The UHW series from Nichicon is a polarized aluminum electrolytic capacitor with a capacitance of 330 µF and a voltage rating of 63V.

Tolerance: ±20%
Impedance: 72 mOhms
Temperature Range: -40°C to 105°C
Lifetime: 10000 Hrs @ 105°C
Package: Radial, Can
Height: 1.043" (26.50mm) when seated
Ripple Current: 995 mA @ 120 Hz and 1.99 A @ 100 kHz
New Designs: Not for new designs
