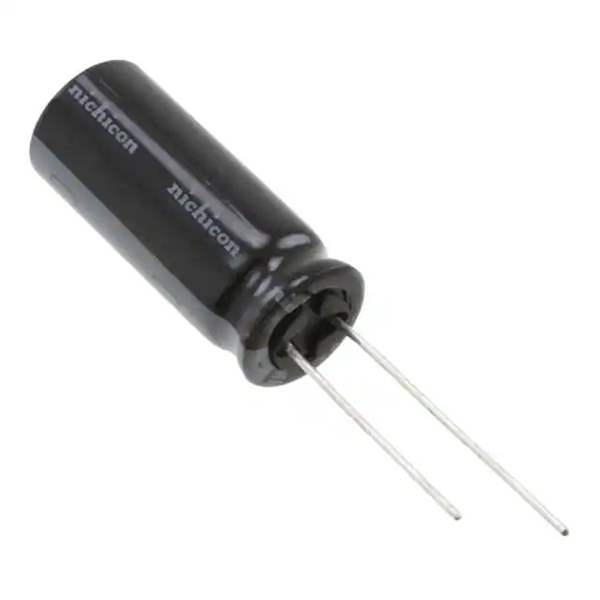

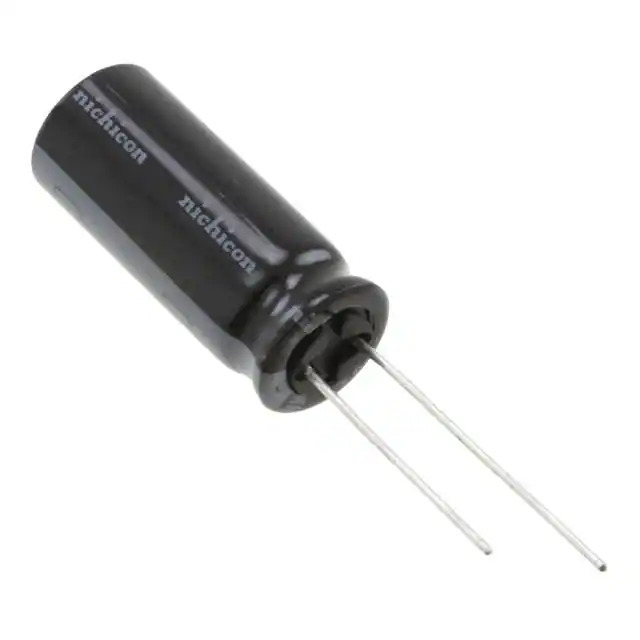

UHW1H102MHD Nichicon
Same model may have multiple batches, images only for reference.

UHW1H102MHD

Part No UHW1H102MHD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 50V RADIAL / 1000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet
UHW1H102MHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHW
Package Bulk
Product Status Not For New Designs
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.1 A @ 120 Hz
Ripple Current @ High Frequency 3.5 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.319" (33.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357869-UHW1H102MHD
Ultra Librarian 3D Model Ultra Librarian UHW1H102MHD CAD Model

Description

The UHW1H102MHD is a radial, can type aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 1000 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 2.1 A @ 120 Hz
  • Ripple Current (High Frequency): 3.5 A @ 100 kHz
  • Series: UHW
  • Lead Spacing: 5.00mm
  • Diameter: 12.50mm
  • Seated Height (Max): 33.50mm
  • Lifetime: 10000 hours @ 105°C
  • Mounting Type: Through Hole
  • For New Designs: No
  • REACH: Unaffected
  • ECCN: EAR99
  • Impedance: 20 mOhms
  • Polarity: Polarized
