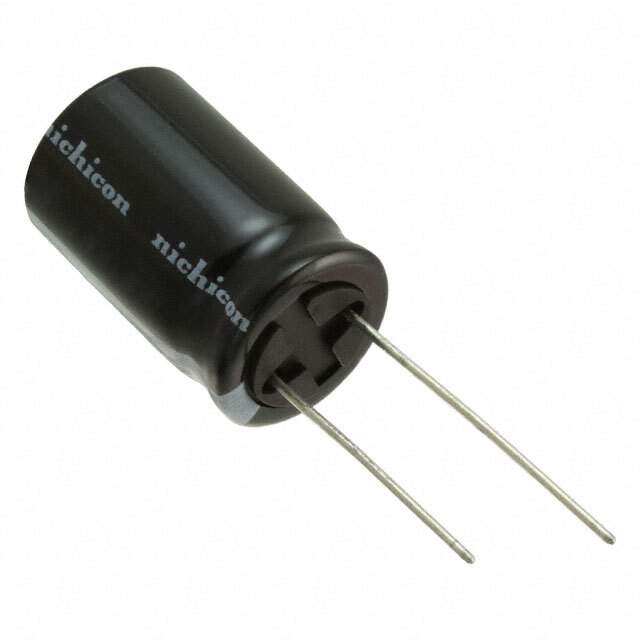

Same model may have multiple batches, images only for reference.

UHV1C392MHD

Name: UHV1C392MHD
Brand: Nichicon
SKU: 1340262
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHV1C392MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3900UF 20% 16V RADIAL / 3900 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Datasheet	UHV1C392MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHV
Package	Bulk
Product Status	Not For New Designs
Capacitance	3900 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.944 A @ 120 Hz
Ripple Current @ High Frequency	3.925 A @ 100 kHz
Impedance	11 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.476" (37.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	500
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340262-UHV1C392MHD
Ultra Librarian 3D Model	Ultra Librarian UHV1C392MHD CAD Model

Description

The Nichicon UHV1C392MHD is an aluminum electrolytic capacitor from the UHV series.

Series: UHV
Capacitance: 3900 µF
Voltage Rating: 16 V
Tolerance: ±20%
Impedance: 11 mOhms
Ripple Current: 2.944 A @ 120 Hz and 3.925 A @ 100 kHz
Lifetime: 6000 Hrs @ 105°C
Mounting Type: Through Hole
Package/Case: Radial, Can
Size/Dimension: 0.492" Dia (12.50mm)
Height - Seated (Max): 1.476" (37.50mm)
Lead Spacing: 0.197" (5.00mm)
Status: Not For New Designs
ECCN: EAR99
REACH Status: REACH Unaffected
HTSUS: 8532.22.0020
Product Status: Not For New Designs
