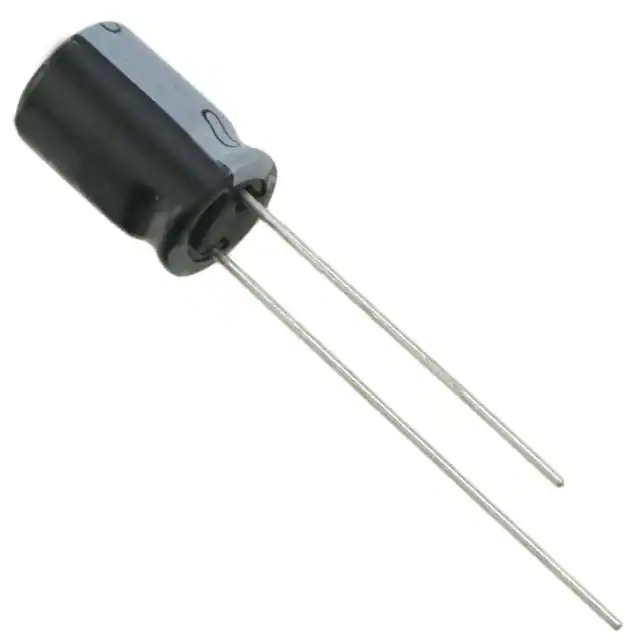

UHE1V151MPD1TD Nichicon
Same model may have multiple batches, images only for reference.

UHE1V151MPD1TD

Part No UHE1V151MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 35V RADIAL / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Datasheet
UHE1V151MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Product Status Not For New Designs
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 448 mA @ 120 Hz
Impedance 130 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357641-UHE1V151MPD1TD
Ultra Librarian 3D Model Ultra Librarian UHE1V151MPD1TD CAD Model

Description

The UHE1V151MPD1TD is a radial, through-hole aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 150 μF
  • Voltage Rating: 35 V
  • Temperature Range: -40°C to 105°C
  • Application: General Purpose
  • Ripple Current: 448 mA @ 120 Hz
  • Polarization: Polarized
  • Tolerance: ±20%
  • Size (Diameter): 0.315"
  • Size (Height): 0.512"
  • Lifetime: 7000 hours @ 105°C
  • Mounting Type: Through Hole
  • Lead Spacing: 0.138" (3.50mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Not Recommended for New Designs
