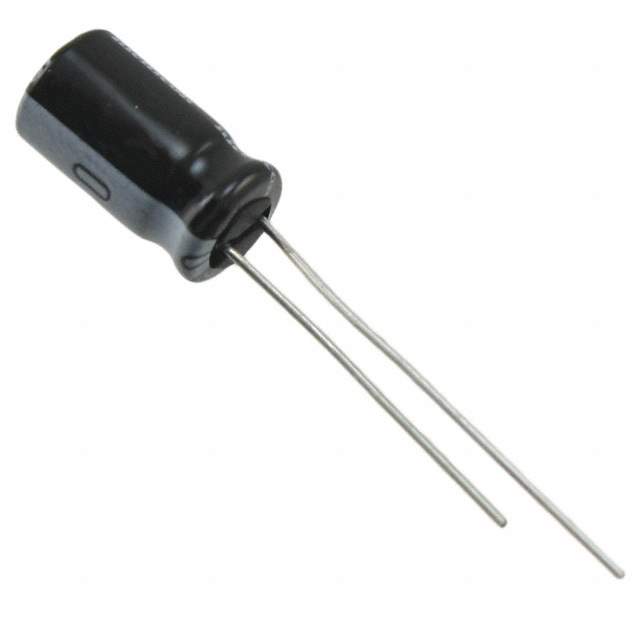

UHE1E101MED Real Image
Same model may have multiple batches, images only for reference.

UHE1E101MED

Part No UHE1E101MED
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V RADIAL / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UHE1E101MED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHE
Package Bulk
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 238 mA @ 120 Hz
Ripple Current @ High Frequency 340 mA @ 100 kHz
Impedance 220 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.433" (11.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 4,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349962-UHE1E101MED
Ultra Librarian 3D Model Ultra Librarian UHE1E101MED CAD Model

Description

The Nichicon UHE1E101MED is an aluminum electrolytic capacitor designed for general-purpose applications. It belongs to the UHE series and comes in a radial, can package that can be through-hole mounted.

  • Capacitor Type: Aluminum Electrolytic
  • Series: UHE
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Capacitance: 100μF
  • Tolerance: ±20%
  • Rated Voltage: 25V
  • Impedance: 220mOhms
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current: 238mA @ 120Hz
  • Ripple Current: 340mA @ 100kHz
  • Operating Temperature: -40°C to 105°C
