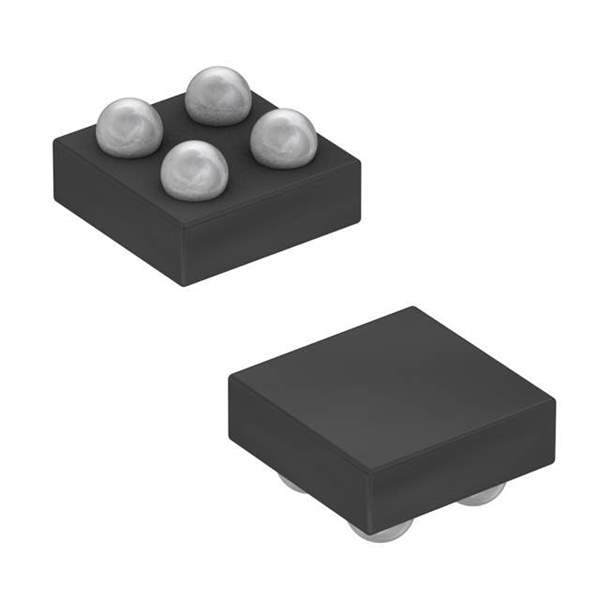

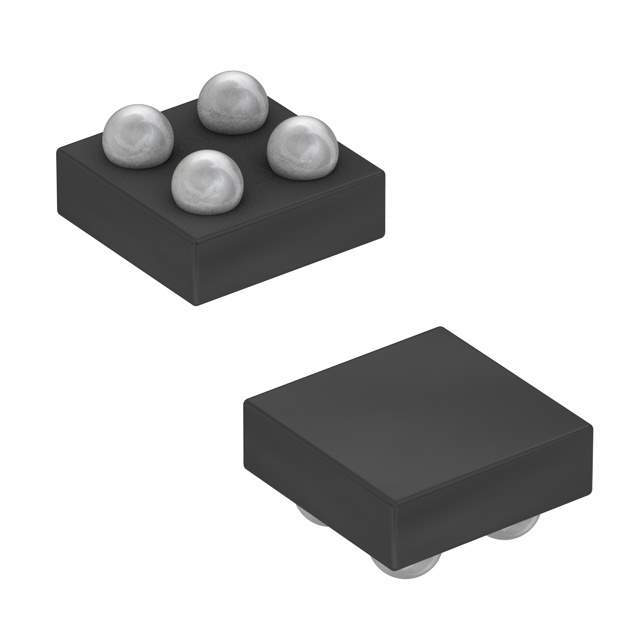

Maxim Integrated MAX2206EBS+T10 RF Detector

The Maxim Integrated MAX2206EBS+T10 is a high-performance RF detector that operates over a wide frequency range, making it an ideal choice for a variety of wireless applications. This compact and efficient device is designed to detect the strength of RF signals in communication systems and convert them into a DC voltage, which can be easily measured and processed.

Key Features

• Frequency Range: The MAX2206EBS+T10 operates over a wide frequency range of 800MHz to 2GHz, providing versatility for use in multiple RF applications including GSM, CDMA, WCDMA, and LTE systems.
• Dynamic Range: It boasts an impressive 45dB dynamic range, allowing for accurate detection of both strong and weak signals without the need for external components.
• Low Power Consumption: Designed for mobile and battery-powered devices, the MAX2206EBS+T10 is optimized for low power consumption, ensuring minimal impact on the overall energy efficiency of the system.
• Package Type: The device is available in a small, 4-bump UCSP (Ultra Chip-Scale Package), which is ideal for space-constrained applications.
• Temperature Range: It operates over an extended temperature range, making it suitable for use in environments with varying climatic conditions.

Applications

• Mobile and Wireless Communication
• Signal Strength Measurement for Antenna Alignment
• Power Amplifier Control Loops
• Transmitter Leakage Detection

The MAX2206EBS+T10 from Maxim Integrated is a robust and reliable solution for RF signal detection. Its high level of integration reduces the need for additional external components, which simplifies design and saves on board space. Whether used in mobile phones, base stations, or other RF communication equipment, the MAX2206EBS+T10 delivers consistent performance and helps maintain the integrity of the signal chain.

With its combination of wide frequency range, high dynamic range, and low power consumption, the MAX2206EBS+T10 is an excellent choice for designers looking to enhance the performance and efficiency of their RF systems.
