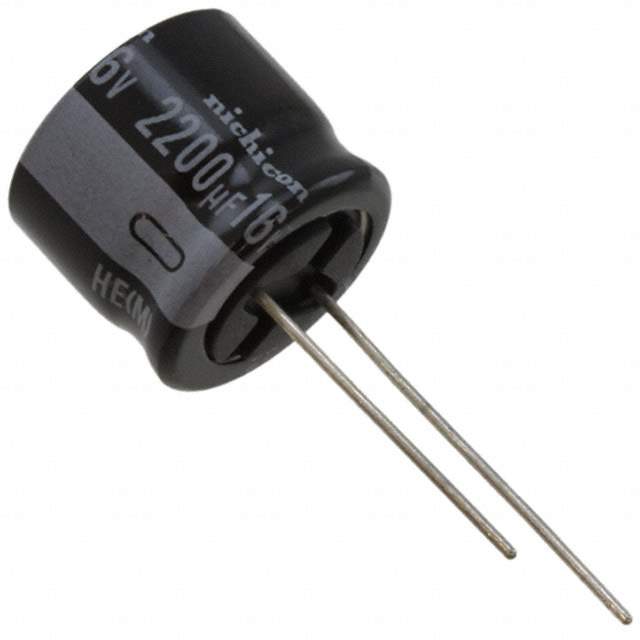

Same model may have multiple batches, images only for reference.

UHE1C222MHD6

Name: UHE1C222MHD6
Brand: Nichicon
SKU: 1186703
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UHE1C222MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.288 A @ 120 Hz
Ripple Current @ High Frequency	2.21 A @ 100 kHz
Impedance	43 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.591" (15.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1533,Q4548174A
Standard Package	400
Win Source Part Number	1186703-UHE1C222MHD6
Ultra Librarian 3D Model	Ultra Librarian UHE1C222MHD6 CAD Model

Description

The UHE1C222MHD6 is an aluminum electrolytic capacitor from Nichicon.

Capacitance: 2200 μF
Voltage Rating: 16V
Tolerance: ±20%
Maximum Impedance: 43 mOhms
Polarity: polarized
Ripple Current (Low Frequency): 2.288 A
Ripple Current (High Frequency): 2.21 A
Application: general purpose
Rated Lifetime: 10,000 hours @ 105°C
Package Type: radial can
Mounting: through-hole
Popularity: not for new designs
