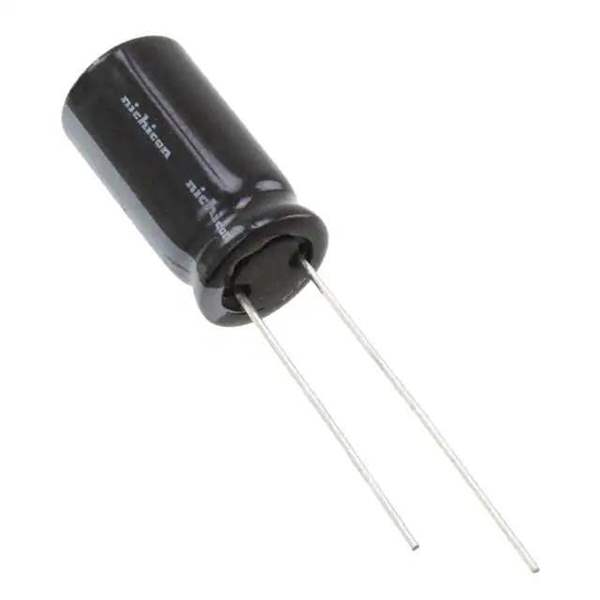

Same model may have multiple batches, images only for reference.

UHE1A102MPD

Name: UHE1A102MPD
Brand: Nichicon
SKU: 901884
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHE1A102MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 10V RADIAL / 1000 μF 10 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Datasheet	UHE1A102MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHE
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	787.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.05 A @ 100 kHz
Impedance	69 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	2,000 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	901884-UHE1A102MPD
Ultra Librarian 3D Model	Ultra Librarian UHE1A102MPD CAD Model

Description

The UHE series aluminum electrolytic capacitor by Nichicon is a reliable and high-performance component for your electronic circuits. With a capacitance of 1000 µF and a voltage rating of 10V, this capacitor is suitable for general-purpose applications.

Series: UHE
Capacitance: 1000 µF
Voltage Rating: 10V
Diameter: 0.315" (8.00mm)
Height: 0.787" (20.00mm)
Impedance: 69 mOhms
Lifetime: 6000 hours @ 105°C
Mounting: Through-Hole
Status: Active
Manufacturer: Nichicon
