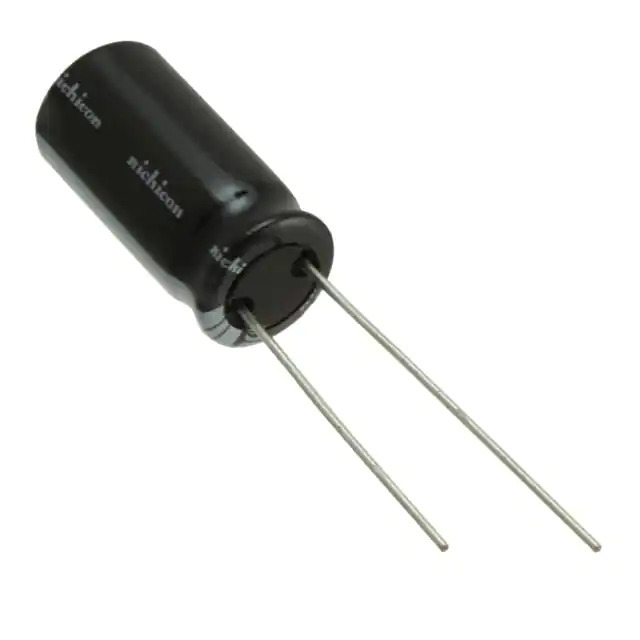

UHD0J102MPD Nichicon
Same model may have multiple batches, images only for reference.

UHD0J102MPD

Part No UHD0J102MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 6.3V RADIAL / 1000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
Datasheet
UHD0J102MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UHD
Package Bulk
Product Status Not For New Designs
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 772.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.03 A @ 100 kHz
Impedance 53 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358257-UHD0J102MPD
Ultra Librarian 3D Model Ultra Librarian UHD0J102MPD CAD Model

Description

The UHD0J102MPD is a radial, can type aluminum electrolytic capacitor from Nichicon's UHD series. Nichicon's UHD0J102MPD has a capacitance of 1000 μF and a voltage rating of 6.3 V.

  • Capacitance: 1000 μF
  • Voltage Rating: 6.3 V
  • Series: UHD
  • Type: Radial, Can Type Aluminum Electrolytic Capacitor
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Lifetime: 4000 hours @ 105°C
  • Ripple Current (Low Frequency): 772.5 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.03 A @ 100 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Diameter: 0.394" (10.00mm)
  • Mounting Type: Through Hole
  • REACH: Unaffected
  • Recommended for New Designs: No
