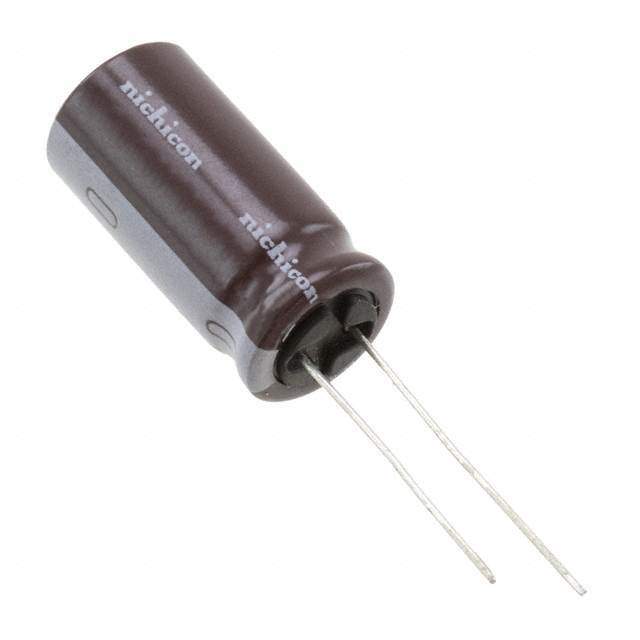

UCY2V470MHD1TO Real Image
Same model may have multiple batches, images only for reference.

UCY2V470MHD1TO

Part No UCY2V470MHD1TO
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 350V RADIAL / 47 µF 350 V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C
Datasheet
UCY2V470MHD1TO Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCY
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 350 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 1.02 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337196-UCY2V470MHD1TO
Ultra Librarian 3D Model Ultra Librarian UCY2V470MHD1TO CAD Model

Description

The UCY series aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 350 V is a general-purpose capacitor designed for through-hole mounting.

  • Capacitance: 47 µF
  • Voltage - Rated: 350 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 510 mA
  • Ripple Current @ High Frequency: 1.02 A
  • Size / Dimension: 0.492" Dia (12.50mm)
  • Height - Seated (Max): 1.043" (26.50mm)
  • Lifetime @ Temp.: 12000 Hrs @ 105°C
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • Operating Temperature: -40°C ~ 105°C
