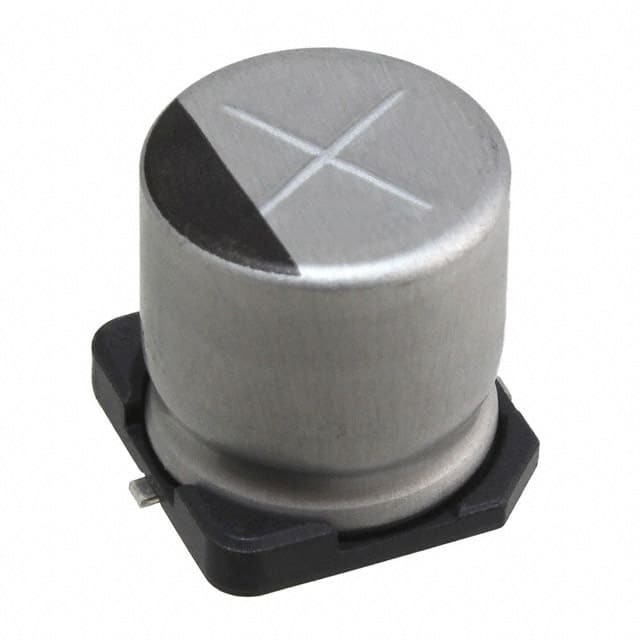

Same model may have multiple batches, images only for reference.
UCW1E471MNL1GS
Same model may have multiple batches, images only for reference.

UCW1E471MNL1GS

Part No UCW1E471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD
Datasheet
UCW1E471MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCW
Package Tape & Reel
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 160 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 850623-UCW1E471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCW1E471MNL1GS CAD Model

Description

The UCW1E471MNL1GS is a general-purpose aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 25 V. It offers stable and reliable performance in various electronic circuits.

  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Size: 0.394" Dia (10.00mm)
  • Seated Height: 0.394" (10.00mm)
  • Tolerance: ±20%
  • Impedance: 160 mOhms
  • Mounting Type: Surface Mount
  • Polarization: Polarized
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Manufacturer: Nichicon
  • Lifetime: 7000 hours @ 105°C
  • Packaging: Tape and Reel
  • Standard Package Size: 500 pcs
