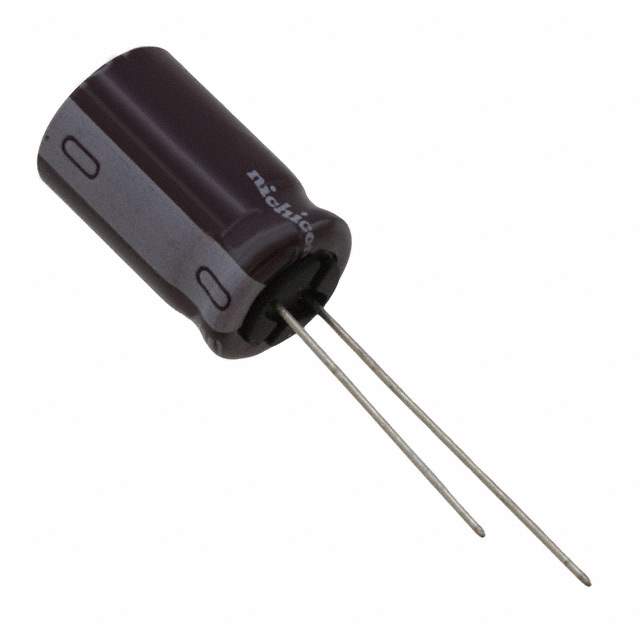

Same model may have multiple batches, images only for reference.

UCS2W100MHD

Name: UCS2W100MHD
Brand: Nichicon
SKU: 1000877
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCS2W100MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 450V RADIAL / 10 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCS
Package	Bulk
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	175 mA @ 120 Hz
Ripple Current @ High Frequency	350 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.846" (21.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-5882
Standard Package	1,000
Win Source Part Number	1000877-UCS2W100MHD
Ultra Librarian 3D Model	Ultra Librarian UCS2W100MHD CAD Model

Description

The UCS2W100MHD from Nichicon is an aluminum electrolytic capacitor used in general-purpose applications.

Manufacturer: Nichicon
Capacitance: 10μF ±20%
Rated Voltage: 450V
Ripple Current: 175mA @ 120Hz and 350mA @ 100kHz
Height: 0.846" (21.50mm)
Lead Spacing: 0.197" (5.00mm)
Lifetime: 10000 hours @ 105°C
Mounting Type: Through-hole
Package: Radial, can case (0.492" Dia (12.50mm))
Operating Temperature: -25°C to 105°C
ECCN: EAR99
ROHS Compliant: Yes
